Removal And Installation: Transaxle: Removal

WARNING: This page is about a different variant/trim than selected.

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
  2. NOTE: Do not allow the steering column to rotate while the steering column shaft is disconnected, or damage to the clockspring may occur. If there is evidence that the steering column has rotated, the clockspring must be removed and recentered. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .

    Steering wheel in straight ahead position.

    General equipment: Steering Wheel Holder.

    G07935577
  3. NOTE: It is not necessary to remove the ACL outlet pipe from the ACL. Remove the ACL and the ACL outlet pipe as an assembly.

    Remove the ACL assembly and ACL outlet pipe. Refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .

  4. Remove the battery tray. Refer to BATTERY, BATTERY MOUNTING & BATTERY CABLES .
  5. G08412443
  6. G08621905
  7. G08616026
  8. G08621937
  9. G08621938
  10. G08031905

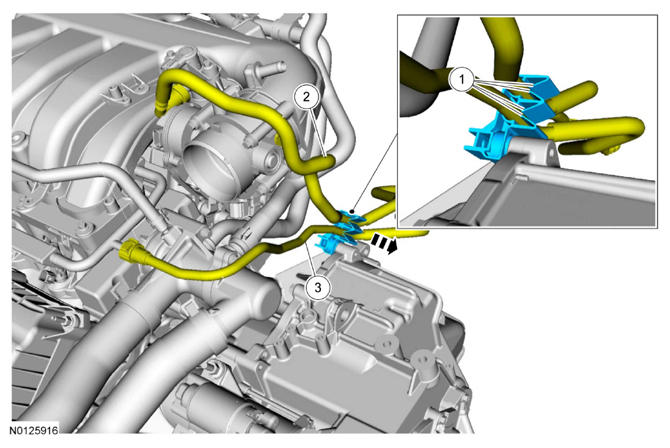

  11. NOTE: Do not use tools with sharp edges to remove the fuel supply tube or the fuel vapor tube from the retainer. Tools with sharp edges can damage the tubes causing a fuel leak.
    NOTE: Note the position and orientation of the fuel tubes in the retainer for assembly. The fuel vapor tube is in the top groove of the retainer and the fuel supply tube is in the bottom groove of the retainer.
    G08978915
  12. G08621945
  13. G08621946
  14. G08621960
  15. Special Tool(s): Eye, Engine Lift 303-1245.
    G08621934
  16. Remove the upper intake manifold. Refer to ENGINE - 3.5L .
  17. Special Tool(s): Support Bar, Engine 303-F072, Bar, Engine Spreader 303-1454.
    G08627060
  18. G08621927
  19. G08621928
  20. Drain transmission fluid.
    G08626977
    • Tighten to 9 Nm (80 lb-in).
      G08626977

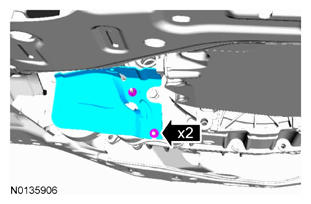

  22. G08976406

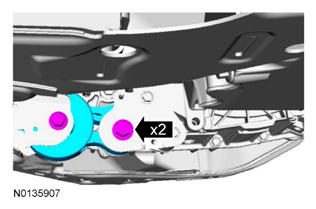

  23. G08980479
  24. Remove the subframe. Refer to UNI-BODY, SUBFRAME AND MOUNTING SYSTEM .
  25. NOTE: It is not necessary to separate the RH halfshaft from the intermediate shaft when removing the intermediate shaft. Remove the intermediate shaft and the RH halfshaft as an assembly.

    Remove the LH front halfshaft and the intermediate shaft. Refer to FRONT DRIVE HALFSHAFTS .

  26. G08978927

    AWD vehicles

  27. Index-mark the driveshaft. Marker. Discard the specified component. Follow local disposal regulations.
    G08616334
  28. Remove the RH catalytic converter. Refer to EXHAUST SYSTEM .
  29. G08621794
  30. G08616382

    All vehicles

  31. G08621798
  32. Turn the component CW 120 degrees 3 times. Discard the specified component. Follow local disposal regulations.
    G08621912
  33. G08621916

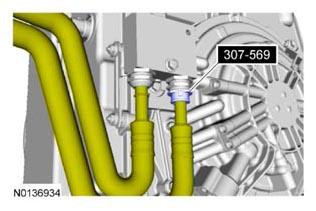

  34. Special Tool(s): Disconnect Tool, Transmission Cooler Line 307-569.
    G08616200
  35. Special Tool(s): Adapter, Transmission Jack 209-00152.

    General equipment: Transmission jack.

    G08627071
  36. G08621959
  37. G08621819
  38. Visual check.
    G08978938

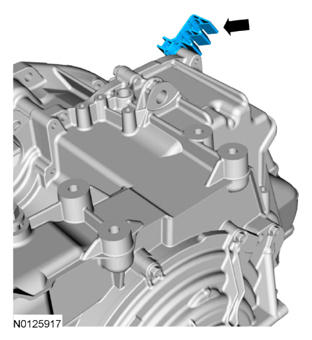

  39. G08978939
  40. G08412444

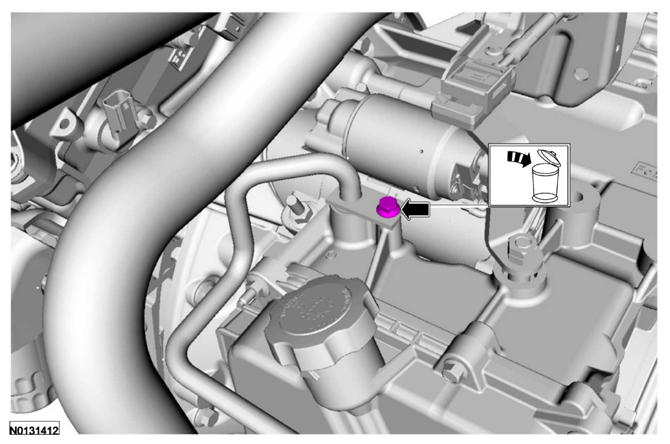

  41. Discard the specified component. Follow local disposal regulations.
    G08978941

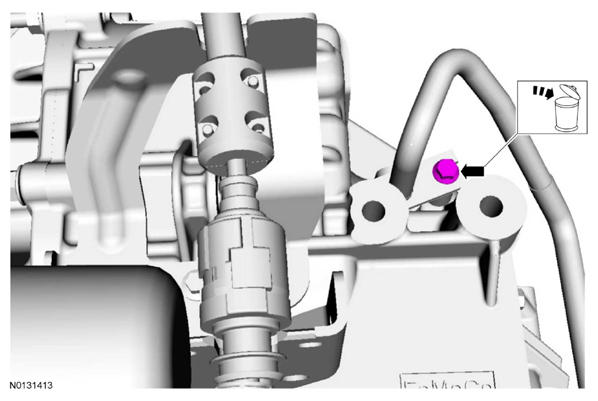

  42. Discard the specified component. Follow local disposal regulations.
    G08978942
  43. G07430582
  44. G08616161
  45. G08616160
  46. If the transmission is to be overhauled or if installing a new transmission, carry out TRANSMISSION FLUID EXCHANGE . Refer to TRANSMISSION FLUID EXCHANGE .
