Main Control Cover: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
- Remove the ACL assembly. Refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .
- Drain the transmission fluid.

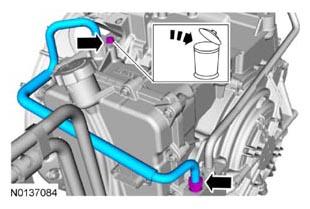

- Discard the specified component. Follow local disposal regulations.
-
NOTE: Note the location of the of the studbolts for assembly.
