Halfshaft Seal - RH, Front Wheel Drive (FWD): Installation

WARNING: This page is about a different variant/trim than selected.
  1. Special Tool(s): Cover Axle Seal Installer 307-582A and Adapter for 303-224 (Handle) 205-153 (T80T-4000-W).

    New halfshaft seal.

    G08412433

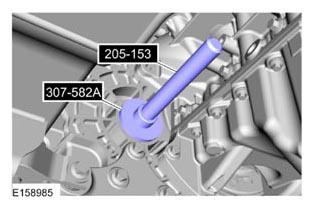

  2. Special Tool(s): Cover Axle Seal Installer 307-582A and Adapter for 303-224 (Handle) 205-153 (T80T-4000-W).
    G08626973
  3. Install the RH halfshaft. REFER to FRONT DRIVE HALFSHAFTS .
  4. Install the RH wheel and tire. REFER to WHEELS & TIRES .
  5. Fill with clean transmission fluid to the correct level.
