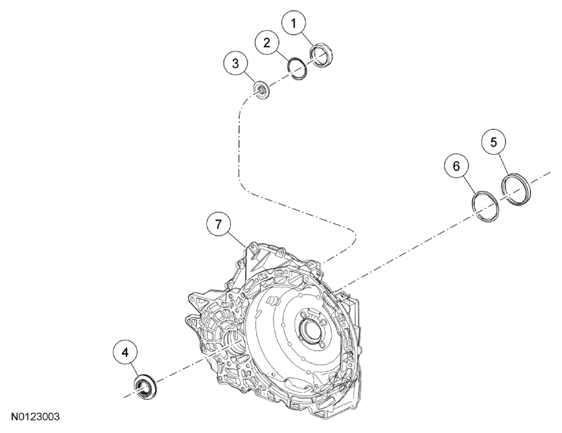

Exploded View
WARNING: This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
7H344 |
Transfer shaft roller bearing cup |
| 2 |
7H367 |
Transfer shaft roller bearing shim |
| 3 |
7L276 |
Transfer shaft tube fluid dam |
| 4 |
1177 |
Halfshaft seal (FWD only) |
| 5 |
4222 |
Differential bearing cup |
| 6 |
4222 |
Differential roller bearing shim |
| 7 |
7005 |
Torque converter housing |
