Low One Way Clutch
WARNING: This page is about a different variant/trim than selected.
For low OWC system operation REFER to AUTOMATIC TRANSMISSION .

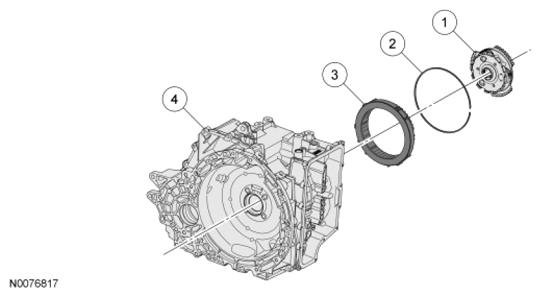

| Item | Part Number | Description |
|---|---|---|
| 1 | 7G226 | Rear planetary carrier |
| 2 | 7D483 | Low OWC snap ring |
| 3 | 7A089 | Low OWC |
| 4 | 7005 | Transmission case |
NOTE:
Do not clean in water or with water-based solvents. Damage to the component may occur.
NOTE:
The low OWC cannot be disassembled.
Clean and inspect the low OWC for cracks and damaged splines. The internal splined section should rotate counterclockwise and lock when rotated clockwise. If any damage is found or the clutch does not rotate or lock, INSTALL a new low OWC.
