Valve Cover - RH: Notes
WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS DESCRIPTION
| Handle 205-153 (T80T-4000-W) |
|
| Installer, Differential Bearing Cone 205-142 (T80T-4000-J) |
|
| Installer, VCT Spark Plug Tube Seal 303-1247/2 |
|
| Remover, VCT Spark Plug Tube Seal 303-1247/1 |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® High Performance Engine RTV Silicone TA-357 |
WSE-M4G323-A6 |
| Motorcraft® Metal Surface Prep ZC-31-A |
- |
| Motorcraft® Silicone Gasket Remover ZC-30 |
- |

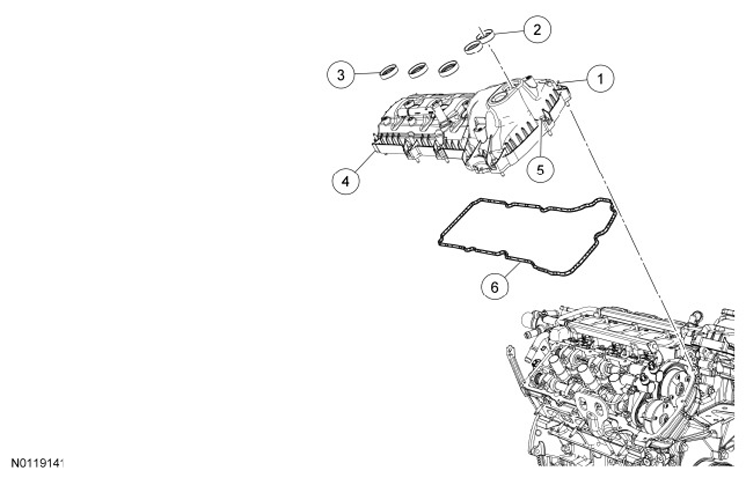

| Item | Part Number | Description |
|---|---|---|
| 1 | 6C519 | Valve cover stud bolt (8 required) |
| 2 | 6C535 | Variable Camshaft Timing (VCT) seal |
| 3 | 6C535 | Spark plug tube seal (3 required) |
| 4 | 6582 | RH valve cover |
| 5 | 6C519 | Valve cover bolt (3 required) |
| 6 | 6584 | RH valve cover gasket |
