Upper Intake Manifold: Notes

WARNING: This page is about a different variant/trim than selected.

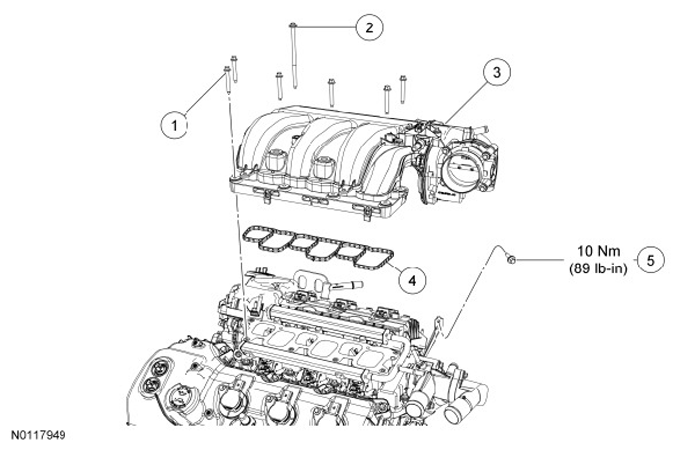

Fig 1: Upper Intake Manifold Replacement Components With Torque Specifications
G07397861Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9Y450 Upper intake manifold bolt (6 required)
2 W715096 Upper intake manifold bolt
3 9424 Upper intake manifold
4 9H486 Upper intake manifold gasket
5 W503275 Upper intake manifold support bracket bolt
