Removal And Installation: Halfshaft: Notes

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS DESCRIPTION CHART

G06065039
Axle Seal Protector
205-816

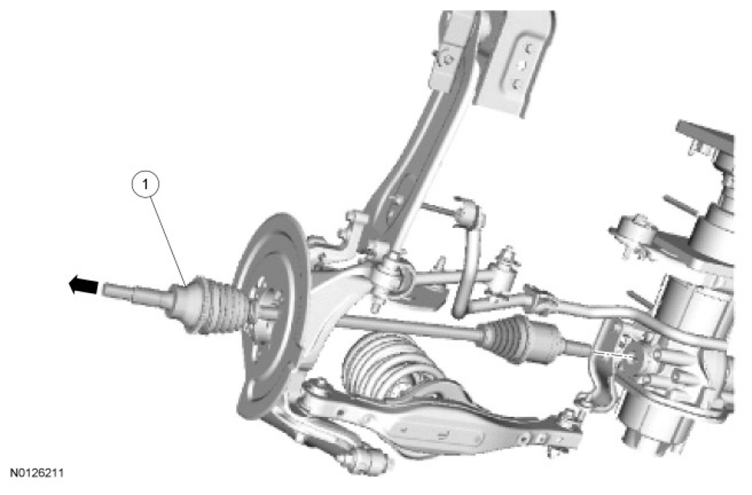

NOTE: LH halfshaft shown in illustration, RH similar.
Fig 1: Identifying Halfshaft
G07397506Courtesy of FORD MOTOR CO.
Item Part Number Description
1 4K138 (RH)/4K139 (LH) Halfshaft assembly
