Removal and Installation

WARNING: This page is about a different variant/trim than selected.
  1. If equipped, remove the RH floor storage compartment.
    1. Lift the liftgate scuff plate upward, releasing the 4 retaining clips. For additional information, refer to INTERIOR TRIM -- EXPLODED VIEW .
    2. Remove the RH floor storage compartment.

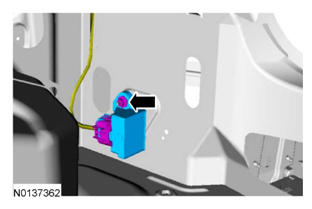

    • To install, tighten to 7 Nm (62 lb-in).
      G08980420
  3. To install, reverse the removal procedure.
