Power Transfer Unit (PTU): Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
  2. Remove the intermediate shaft. Refer to FRONT DRIVE HALFSHAFTS .
  3. Index-mark the driveshaft. Marker. Discard the specified component. Follow local disposal regulations.
    G08616334
  4. Remove the exhaust flexible pipe and the RH catalytic converter. Refer to EXHAUST SYSTEM .
  5. G08976406
  6. G08980479
  7. G08621794
  8. G08616382

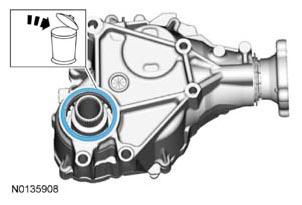

  9. Discard the specified component. Follow local disposal regulations.
    G08616365
