Input Shaft Seal: Installation

WARNING: This page is about a different variant/trim than selected.

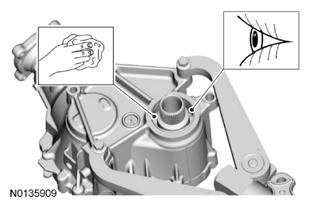

  1. Clean the specified component with the special material. Visual check.
    G08980444

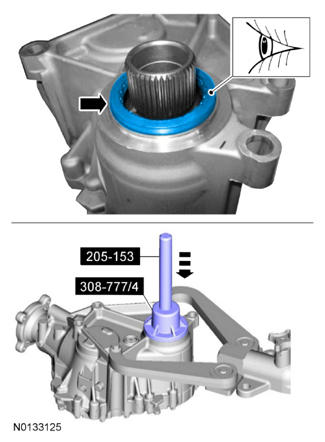

  2. Visual check.

    Special Tool(s): Remover/Installer, PTU Input Shaft Seal 308-777/4, Handle 205-153 (T80T-4000-W).

    G08980445

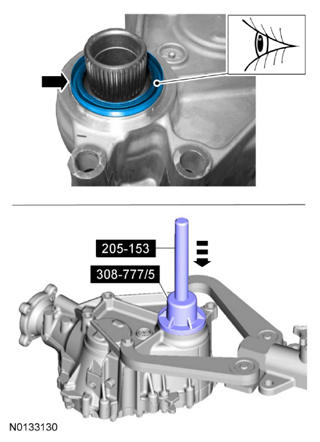

  3. Visual check.

    Special Tool(s): Remover/Installer, PTU Input Shaft Seal 308-777/5, Handle 205-153 (T80T-4000-W).

    G08980446
  4. New compression seal.
    G08980447
  5. Install the PTU. Refer to POWER TRANSFER UNIT (PTU) .
  6. Fill the PTU as necessary. Refer to POWER TRANSFER UNIT (PTU) DRAINING AND FILLING .
