Transmission Fluid Cooler Tubes: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
  2. Remove the front bumper cover. Refer to BUMPER SYSTEM .
  3. Remove the air cleaner. Refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .
  4. Remove the air cleaner outlet pipe. Refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .
  5. Remove the battery. Refer to BATTERY, BATTERY MOUNTING & BATTERY CABLES .

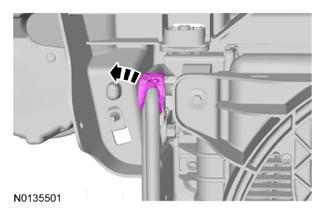

  6. G08980164

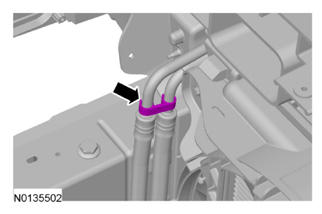

  7. G08980165
  8. Remove or install a cable tie.
    G08980166
  9. G08980167

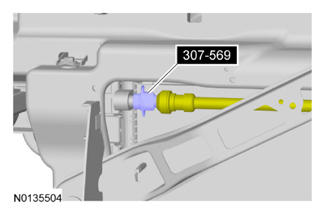

  10. Special Tool(s): Disconnect Tool, Transmission Cooler Line 307-569.
    G08980168
  11. G08980169
  12. On both sides.
    G08980170

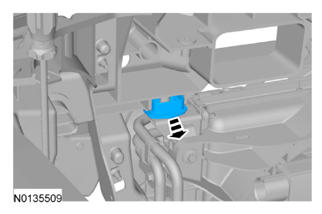

  13. G08980171
  14. G08980172
  15. G08616166

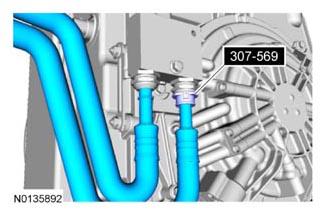

  16. Special Tool(s): Disconnect Tool, Transmission Cooler Line 307-569.
    G08616157
  17. Discard the specified component. Follow local disposal regulations.
    G08616158

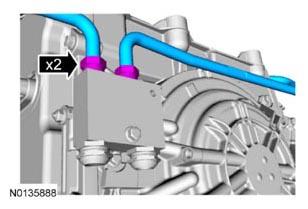

  18. G08616159
  19. G08616160
  20. G08616161
