Transmission Fluid Cooler Tubes: Installation

WARNING: This page is about a different variant/trim than selected.
    • Tighten to 9 Nm (80 lb-in).
      G08616161
  2. Visual check. Apply the specified lubricant to the specified component.

    Material: Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC.

    1. Seal (7D258)
    2. Backing ring (7J324)
      • Tighten to 30 Nm (22 lb-ft).
        G08616163
    • Tighten to 9 Nm (80 lb-in).
      G08616164

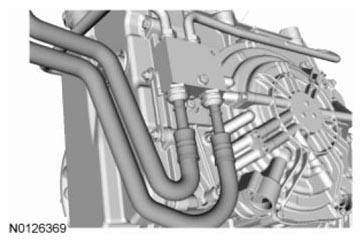

  4. G07402062
  5. G08616166

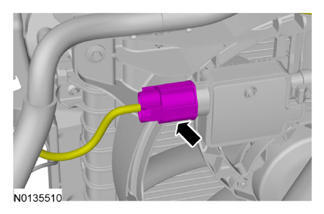

  6. G08980172

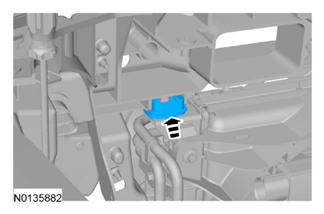

  7. G08980185
  8. On both sides.
    • Tighten to 9 Nm (80 lb-in).

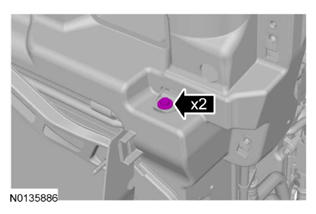

      G08980170
    • Tighten to 25 Nm (18 lb-ft).

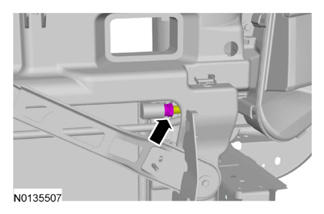

      G08980169

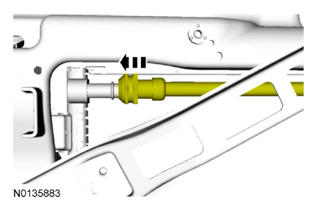

  10. G08980188

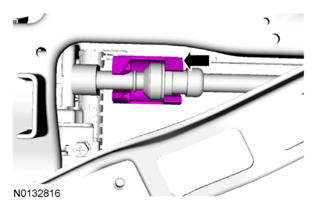

  11. G08980167
  12. Remove or install a cable tie.

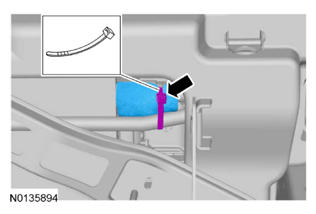

    G08980166

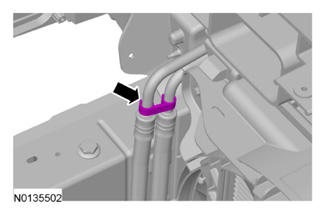

  13. G08980191

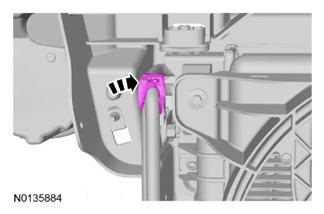

  14. G08980192
  15. Install the battery. Refer to BATTERY, BATTERY MOUNTING & BATTERY CABLES .
  16. Install the air cleaner outlet pipe. Refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .
  17. Install the air cleaner. Refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .
  18. Install the front bumper cover. Refer to BUMPER SYSTEM .
  19. Check the transmission fluid level and add transmission fluid as necessary.
