Safety Belt Shoulder Height Adjuster: Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: RH shown in illustration, LH similar.

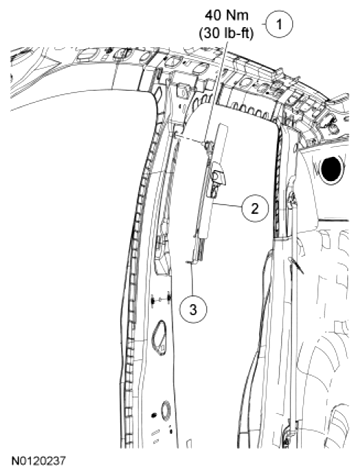

Fig 1: Safety Belt Shoulder Height Adjuster, T-Tab And Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Safety belt shoulder height adjuster bolt (part of 602B82)
2	602B82	Safety belt shoulder height adjuster
3	-	Safety belt shoulder height adjuster T-tab (part of 602B82)
