LH Manual Seat
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

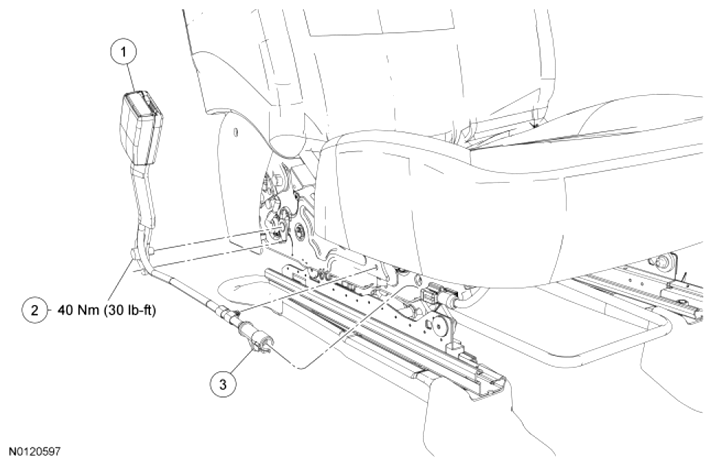

| Item | Part Number | Description |
|---|---|---|
| 1 | 61203 | Safety belt buckle |
| 2 | - | Safety belt buckle bolt (part of 61203) |
| 3 | - | Safety belt buckle electrical connector (part of 61203) |
- Position the seat to access the safety belt buckle.
- Disconnect the safety belt buckle switch electrical connector and separate any pin-type retainers.
-
NOTE: Note the position of the safety belt buckle anti-rotation locator tab for correct installation.
Remove the safety belt buckle.
- All seats with a power seat track and RH seat with a manual seat track, remove the safety belt buckle nut.
- To install, tighten to 40 Nm (30 lb-ft).
- LH seat with a manual seat track, remove the safety belt buckle bolt.
- To install, tighten to 40 Nm (30 lb-ft).
- All seats with a power seat track and RH seat with a manual seat track, remove the safety belt buckle nut.
- To install, reverse the removal procedures.
- Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
