Liftgate/Trunk Module (LTM): Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

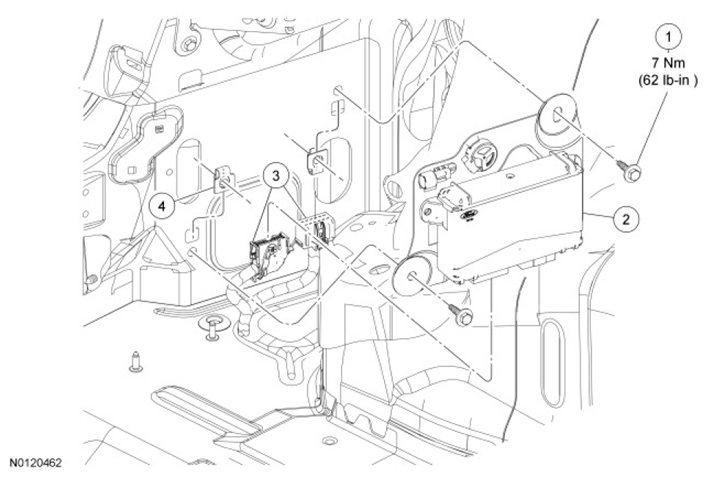

Fig 1: Liftgate/Trunk Module, Retaining Bolt, Electrical Connectors And Nut With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W505424 | Liftgate/Trunk Module (LTM) retaining bolt (2 required) |
| 2 | 14B291A | LTM |
| 3 | - | LTM electrical connectors (part of 14A005) |
| 4 | N802810 | LTM nut (2 required) |
