Applique - Liftgate: Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

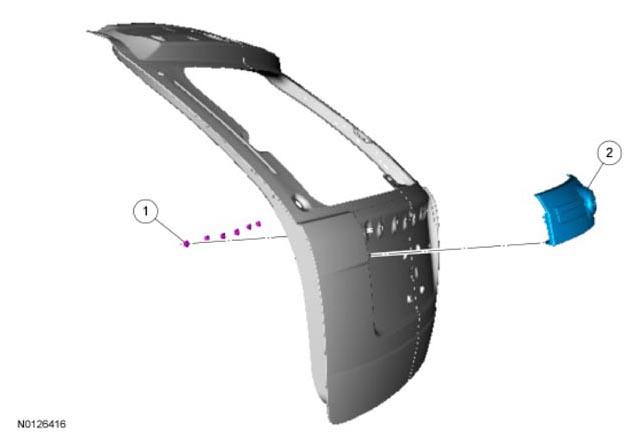

Liftgate applique with rear video camera shown in illustration, without camera similar

G09298576
Item Part Number Description
1 W702841 Liftgate applique nuts (6 required)
2 19G490/13508A Liftgate applique (with video camera/without camera)
