Removal and Installation
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Module configuration is required when a new Side Obstacle Detection Control Module - Left (SOD-L) or Side Obstacle Detection Control Module - Right (SOD-R) is being installed. Upload the SOD-L or SOD-R module configuration information to the scan tool. For additional information, refer to PROGRAMMABLE MODULE INSTALLATION (PMI) .
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

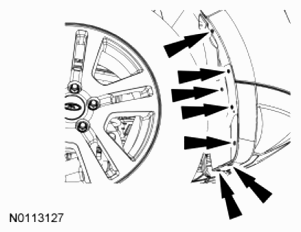

- Remove the 7 rear splash shield screws. For additional information, refer to BUMPERS .
-
NOTE: The SOD-L and the SOD-R are not interchangeable. Make sure the replacement module is correct for the vehicle application.
Separate the rear bumper cover from the rear quarter panel and gently flex the rear bumper cover to access the SOD-L or SOD-R .

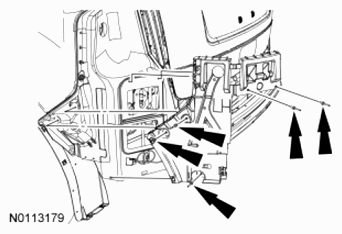

- Remove the screw and washer.
- Disconnect the SOD-L or SOD-R electrical connector.
- Remove the SOD-L or the SOD-R .
- If removing the bracket, remove the rear lamp assembly. For additional information, refer to EXTERIOR LIGHTING .
- Remove the 5 rivets and bracket.
- To install, reverse the removal procedure.
- Download the SOD-L or the SOD-R configuration information. For additional information, refer to MODULE CONFIGURATION .
-
NOTE: When enabling the Blind Spot Information System (BLIS™) and Cross Traffic Alert (CTA) system make sure to enable the systems in both the SOD-L and the SOD-R . Failure to do so results in a mismatch system fault.
Verify in the programmable parameters that the Blind Spot Information System (BLIS™) and Cross Traffic Alert (CTA) system are enabled in the SOD-L and SOD-R .
- After the SOD-L or the SOD-R is configured, shift the selector lever though all the transaxle gear positions (PRNDL).
