Side Obstacle Detection (SOD) Module: Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: Rear bumper cover removed for clarity.

NOTE: Left rear quarter panel shown in illustration, right side similar.

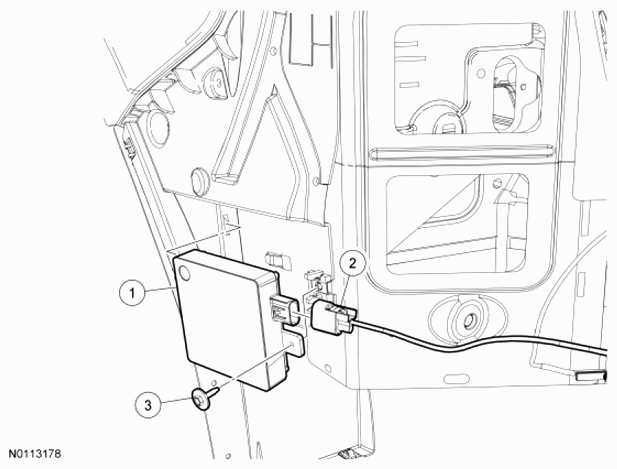

Fig 1: Identifying Side Obstacle Detection Module Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14C689	Side Obstacle Detection Control Module - Left (SOD-L)/Side Obstacle Detection Control Module - Right (SOD-R)
2	-	SOD-L /SOD-R electrical connector (part of 14A005)
3	W503901	SOD-L /SOD-R screw and washer
