Video Camera: Removal
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Edge
- Remove the rear liftgate applique. For additional information, refer to EXTERIOR TRIM AND ORNAMENTATION .
- Carefully remove the name plate from the rear liftgate applique and discard.

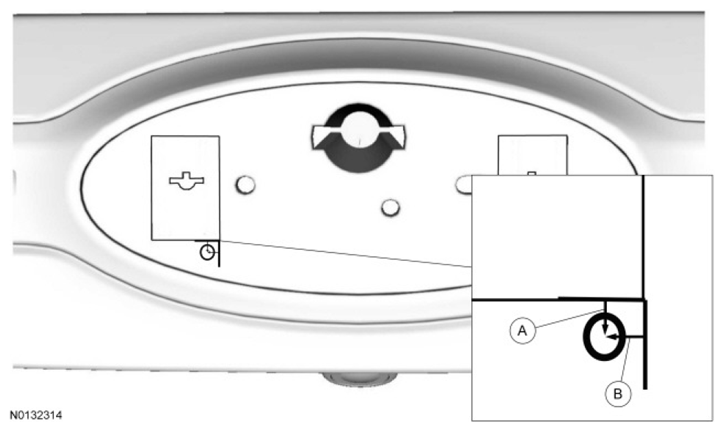

- Drill a 6.35 mm (0.25 in) hole through the rear lift gate applique as indicated.
- A: measure down 3.175 mm (0.125 in) from the left side embossed edge.
- B: measure over 6.35 mm (0.25 in) from the left side embossed edge.
- Loosen the rear video camera bracket screw (T-20) through the access hole.
- Remove the rear video camera bracket and the rear video camera.
- Disconnect the electrical connector.
MKX
- Remove the rear liftgate trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
- Remove the rear video camera bracket screw.
- Remove the rear video camera and bracket.
- Disconnect the electrical connector.
