Roof Opening Panel Motor(s) and Electrical
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

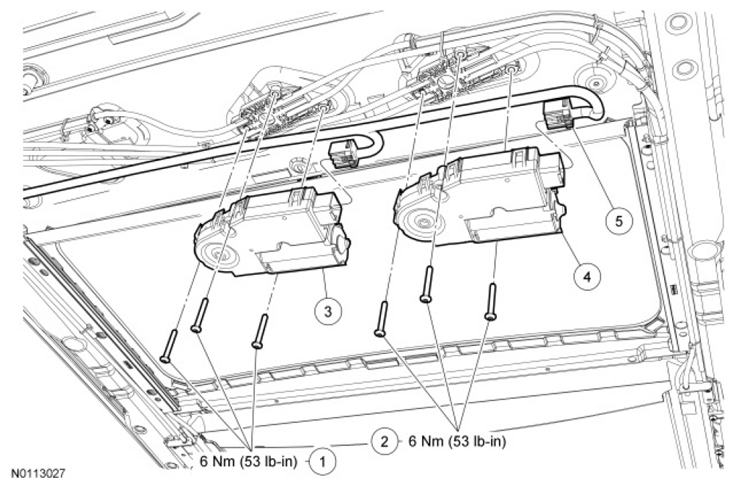

Fig 1: Exploded View Of Roof Opening Panel With Torque Specifications - Roof Opening Panel Motor(s) And Electrical
| Item | Part Number | Description |
|---|---|---|
| 1 | W790077 | Shade motor retaining screws (3 required) |
| 2 | W790077 | Sliding glass motor retaining screws (3 required) |
| 3 | 15790 | Shade motor assembly (white label) |
| 4 | 15790 | Sliding glass motor assembly (blue label) |
| 5 | 15A657 | Roof opening panel motor harness assembly |
