Motor Block and Drive Tube Assembly
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

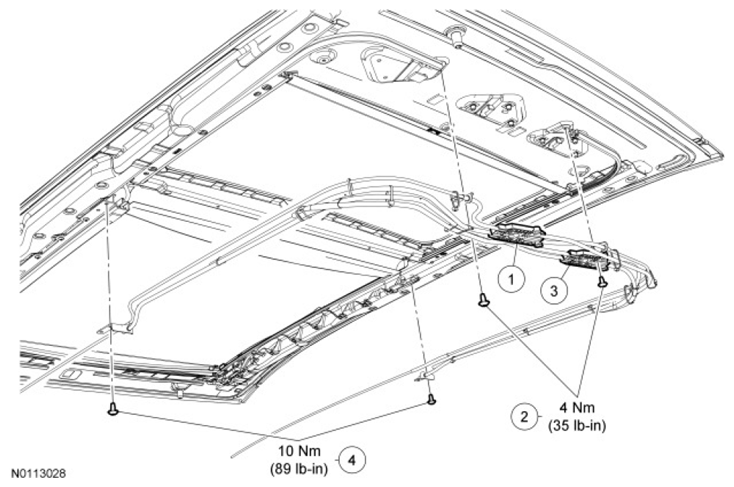

Fig 1: Exploded View Of Roof Opening Panel With Torque Specifications - Motor Block And Drive Tube Assembly
| Item | Part Number | Description |
|---|---|---|
| 1 | 502C22 | Shade motor block and drive tube assembly |
| 2 | W790073 | Rear drive tube bracket-to-housing screws (2 required) |
| 2 | W790082 | Service replacement fasteners for W790073 (use only if threaded hole becomes stripped during assembly) |
| 3 | 502C22 | Sliding glass motor block and drive tube assembly |
| 4 | W790073 | Front drive tube bracket-to-guide track screws (2 required) |
| 4 | W790082 | Service replacement fasteners for W790073 (use only if threaded hole becomes stripped during assembly) |
