Roof Opening Panel Track Cleaning
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
GENERAL EQUIPMENT DESCRIPTIONS
| 19.05 mm (0.75 in) Synthetic Brush |
| 38.1 mm (1.5 in) Synthetic Brush |
| Shop Towels |
| Water Hose |
| Air Gun |
| Cotton Tipped Swab |
| Vacuum Cleaner |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® PTFE Lubricant XG-8 |
ESB-M1C111-B |
| Motorcraft® Silicone Spray Lubricant XL-6 |
ESR-M13P4-A |
NOTE:
All steps are required on both sides.
-
NOTE: On the front of the brush, only a slight upward bend is necessary.

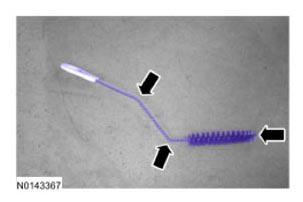

Bend the brush as shown in illustration for adequate cleaning of the rear tracks.
General Equipment: 19.05 mm (0.75 in) Synthetic Brush.

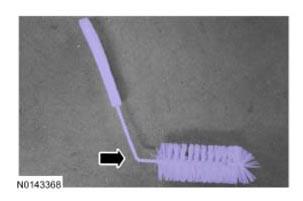

- Bend the brush as shown in illustration for adequate cleaning of the front tracks.
General Equipment: 38.1 mm (1.5 in) Synthetic Brush.

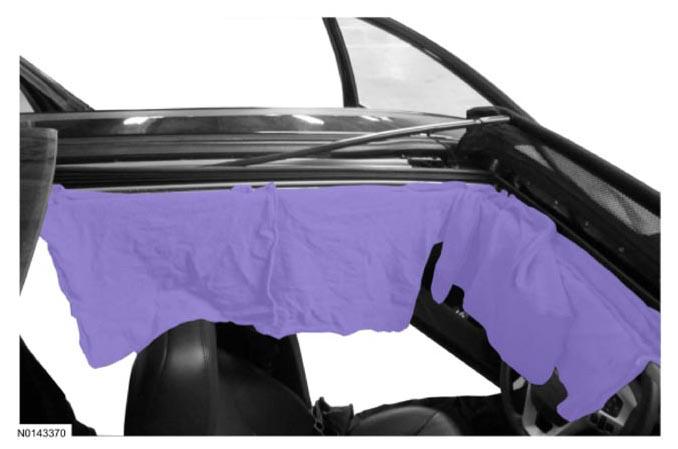

- Place shop towels between the roof and headliner as shown in illustration and cover the interior to protect from debris while cleaning the tracks.
General Equipment: Shop Towels.
-
NOTE: Use shop towels as necessary to retain the hose position or damage to the vehicle finish may occur.

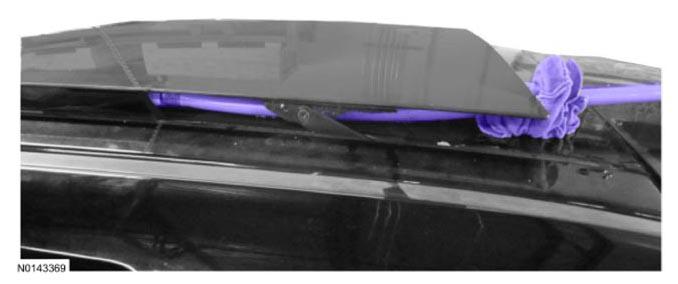

Position a water hose as shown in illustration for rinsing the rear tracks. Turn the water on to very light trickle.
General Equipment: Water Hose.
General Equipment: Shop Towels.

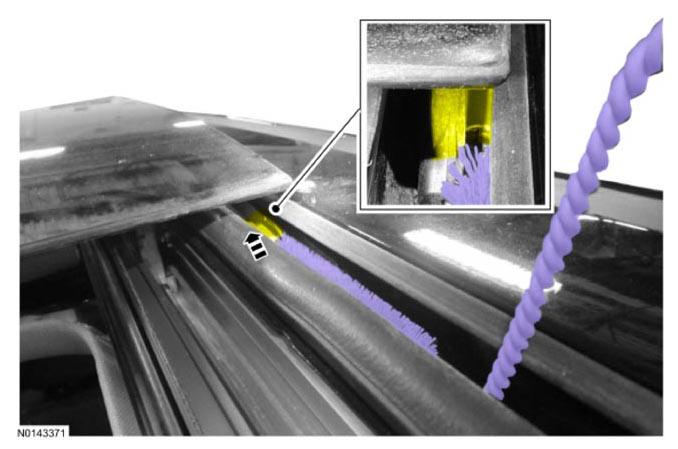

- Insert the brush at the front of the rear tracks.
General Equipment: 19.05 mm (0.75 in) Synthetic Brush.

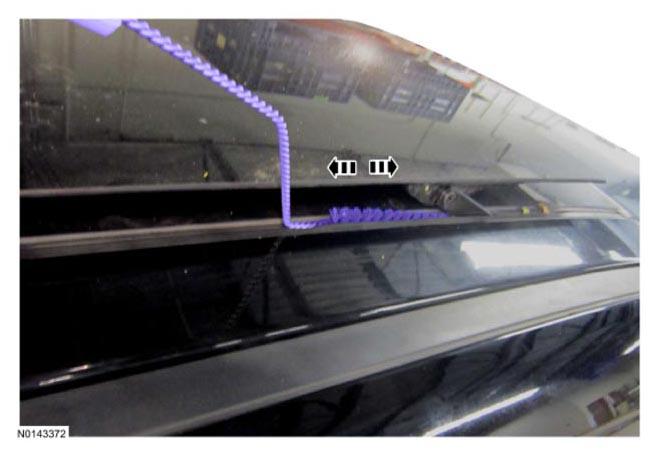

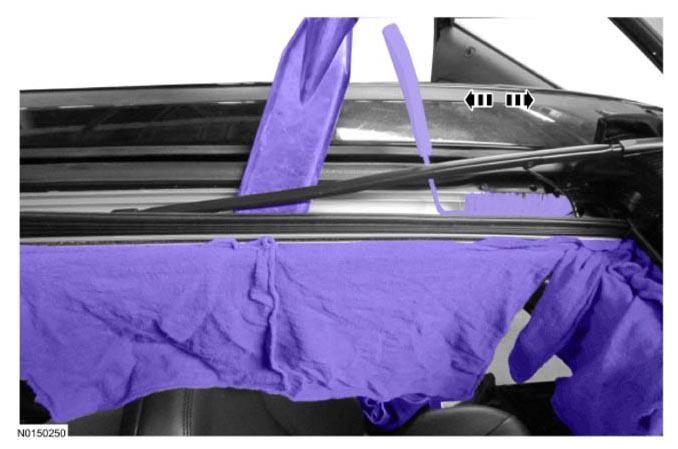

- Slide the brush fully back and forth in the rear tracks 3 times.
General Equipment: 19.05 mm (0.75 in) Synthetic Brush.

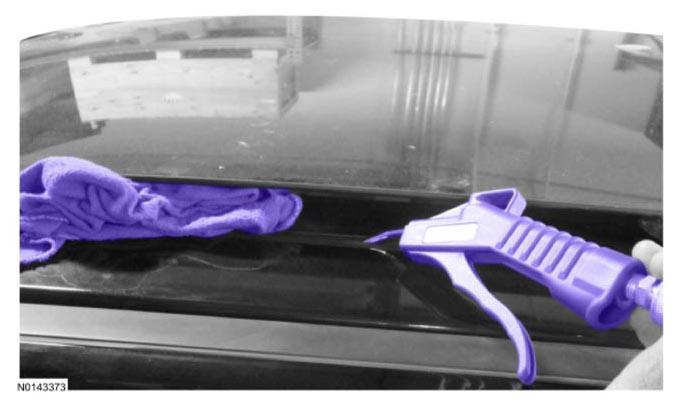

- With the brush and water hose removed, use shop air with minimal air pressure to blow dry the rear tracks. General Equipment: Air Gun.

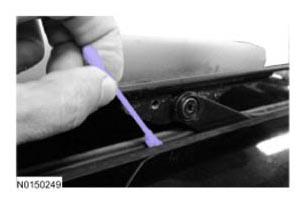

- Using a cotton tipped swab to apply, lubricate the rear tracks using a small amount of dry graphite lubricant. General Equipment: Cotton Tipped Swab.
- Insert the dry brush in the front tracks, and push the brush forward and back 3 times, then vacuum the tracks.
General Equipment: 19.05 mm (0.75 in) Synthetic Brush.
General Equipment: Vacuum Cleaner.
- Using a shop towel to apply, lubricate the front tracks using a small amount of lubricant.
General Equipment: Shop Towels.
Material: PTFE Lubricant XG-8, or Silicone Spray Lubricant XL-6.
