Windshield Glass: Notes

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .
SPECIAL TOOL DESCRIPTION

G06286084
Air Caulking Gun
AST405 or equivalent
G09299550
Deluxe Windshield Removal Tool
164-R2450 or equivalent
G09299559
The Pumper
164-R2459 or equivalent
MATERIAL SPECIFICATIONS

Item Specification
Dow Urethane Adhesive
Betaseal™ Express
-
Dow Urethane One Step Glass Primer
Betaprime™ 5500/5500A/5500SA
-
Sika Urethane Adhesive
Sika Tack ASAP
-
Sika Urethane Metal and Glass Primer
Sika 206 G+P
-
Motorcraft® Ultra-Clear Spray Glass Cleaner
ZC-23
ESR-M14P5-A

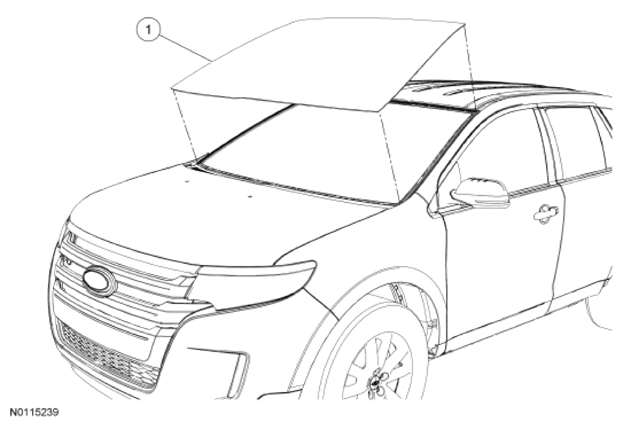

Fig 1: Identifying Windshield Glass
G09299270Courtesy of FORD MOTOR CO.
Item Part Number Description
1 03100 Windshield
