Window Glass - Liftgate: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
SPECIAL TOOL DESCRIPTION
| Air Caulking Gun AST405 or equivalent |
|
| Deluxe Windshield Removal Tool 164-R2450 or equivalent |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Dow Urethane Adhesive Betaseal™ Express |
- |
| Dow Urethane One Step Glass Primer Betaprime™ 5500/5500A/5500SA |
- |
| Sika Urethane Adhesive Sika Tack ASAP |
- |
| Sika Urethane Metal and Glass Primer Sika 206 G+P |
- |
| Motorcraft® Ultra-Clear Spray Glass Cleaner ZC-23 |
ESR-M14P5-A |

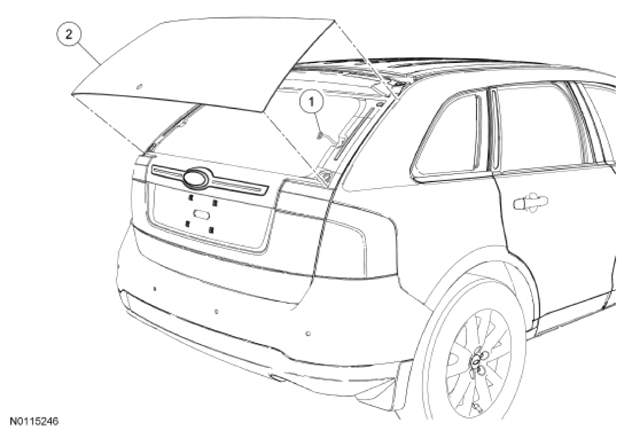

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Electrical connector |
| 2 | 42006 | Rear window glass |
