Glass, Frames and Mechanisms - Exploded View, Rear Door
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

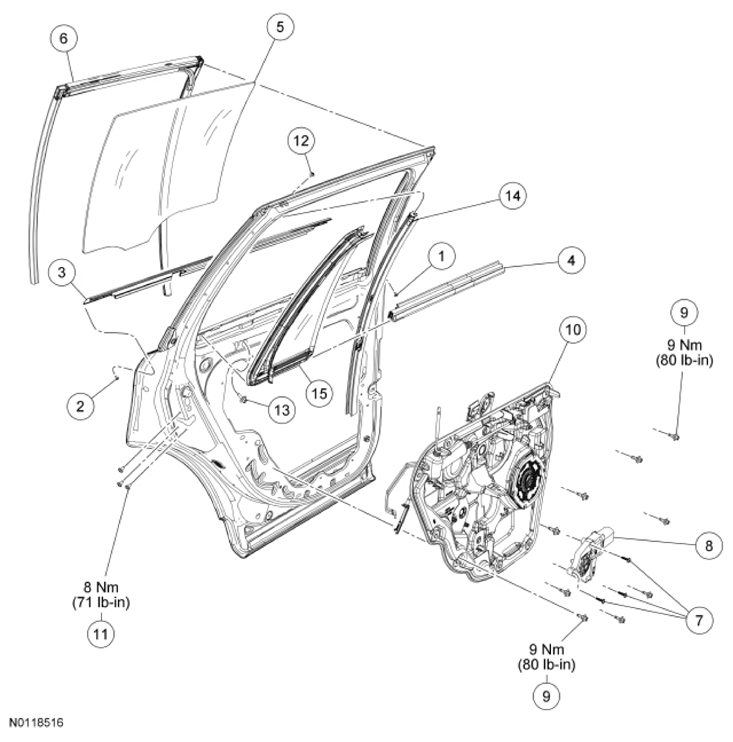

| Item | Part Number | Description |
|---|---|---|
| 1 | W709451 | Rear door glass weatherstrip C-pillar screw |
| 2 | W709451 | Rear door glass weatherstrip D-pillar screw |
| 3 | 25596 RH/25597 LH | Rear door glass weatherstrip |
| 4 | 25860 RH/25861 LH | Interior weatherstrip |
| 5 | 25712 RH/25713 LH | Rear door window glass |
| 6 | 25766 RH/25767 LH | Rear door glass top run |
| 7 | 166193 | Window motor screws |
| 8 | 23395 RH/23395 LH | Window regulator motor |
| 9 | W713881 | Rear door module bolts (9 required) |
| 10 | 24994 RH/24995 LH | Rear door module |
| 11 | W705830 | Door latch screw (3 required) |
| 12 | N811106 | Upper fixed window screw |
| 13 | W714923 | Lower fixed window screw |
| 14 | 25796 RH/25797 LH | Center guide bracket |
| 15 | 25380 RH/25381 LH | Fixed glass assembly |
- For additional information, refer to the appropriate procedures.
