Glass, Frames and Mechanisms - Exploded View, Front Door

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: LH door shown in illustration, RH door similar.

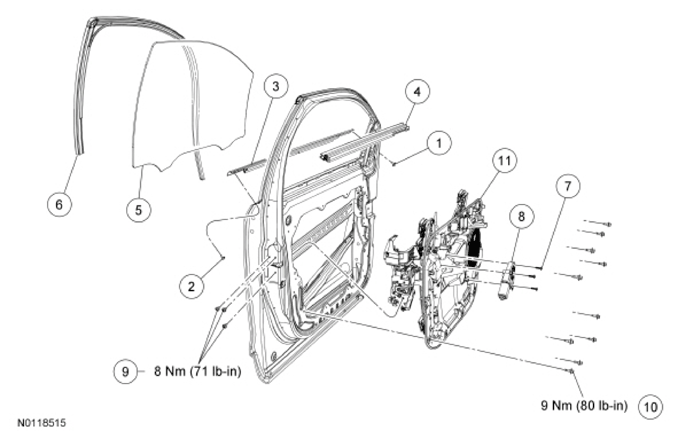

Fig 1: Exploded View Of Front Door Glass, Frames And Mechanisms With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W709451	A-pillar weatherstrip screw
2	W709451	B-pillar weatherstrip screw
3	21452 RH/21453 LH	Exterior door window glass moulding
4	21456	Interior door window glass moulding
5	21410 RH/21411 LH	Front door window glass
6	21546 RH/21547 LH	Door window glass top run
7	166193	Window motor screw (3 required)
8	23394 RH/23395 LH	Window motor
9	W705830	Door latch screws (3 required)
10	W713881	Door module bolt (10 required)
11	235A86 RH/235A87 LH	Door module

For additional information, refer to the appropriate procedures.
