Fuel Tank and Fuel Lines Connections
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

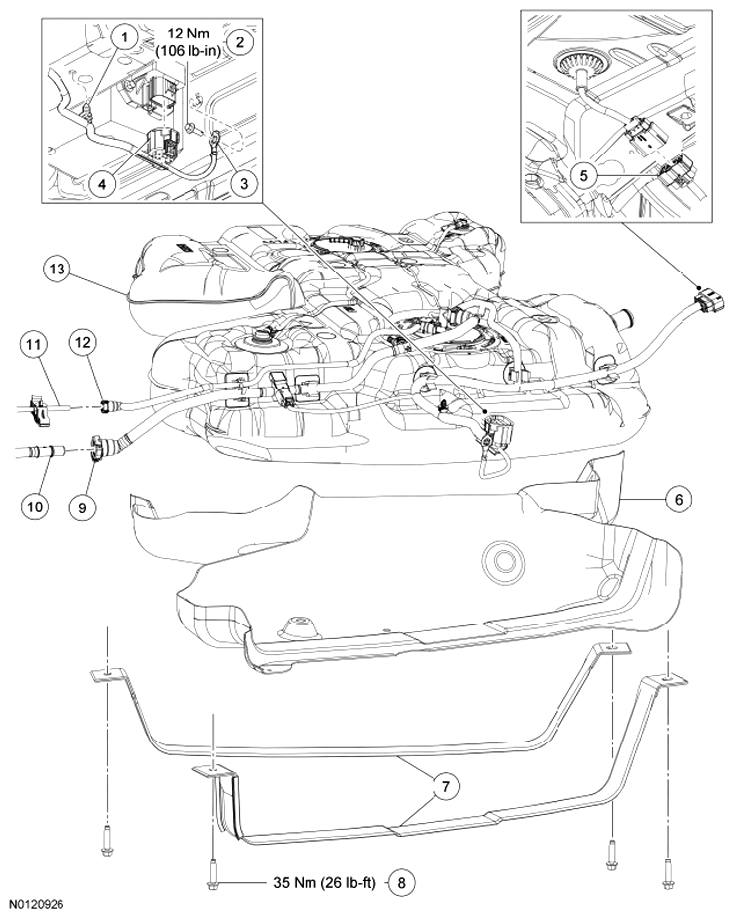

All-Wheel Drive (AWD) fuel tank shown in illustration, Front Wheel Drive (FWD) fuel tank similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel tank wiring harness pin-type retainer (part of 14407) |
| 2 | W706281 | Fuel tank wiring harness ground bolt |
| 3 | - | Fuel tank wiring harness ground eyelet (part of 14407) |
| 4 | - | Fuel Pump Control Module (FPCM) electrical connector (part of 14407) |
| 5 | 14A464 | Fuel tank wiring harness electrical connector |
| 6 | 9B007 | Fuel tank shield |
| 7 | 9092 | Fuel tank straps |
| 8 | N811781 | Fuel tank strap bolts (4 required) |
| 9 | - | Fuel vapor tube assembly-to-fuel tank vapor tube quick connect coupling (part of 9D667) |
| 10 | - | Fuel vapor tube assembly (part of 9S284) |
| 11 | - | Fuel tube assembly (part of 9S284) |
| 12 | - | Fuel tank jumper tube-to-fuel tube quick connect coupling (part of 9324) |
| 13 | 9002 | Fuel tank |
