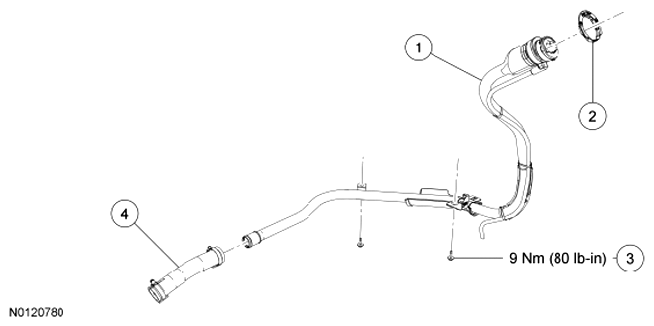

Fuel Tank Filler Pipe Assembly
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
9034 |
Fuel tank filler pipe |
| 2 |
9K072 |
Fuel tank filler pipe bezel |
| 3 |
W710330 |
Fuel tank filler pipe bolt (2 required) |
| 4 |
9047 |
Fuel tank filler pipe hose |
- For additional information, refer to the appropriate procedures.
