Removal and Installation

Driver side register

1. Remove the Instrument Panel Cluster (IPC) lower finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
2. Remove the Front Lighting Control Module (FLM) for additional information, refer to EXTERIOR LIGHTING .
3. Remove the driver side register screw.

   Passenger side register

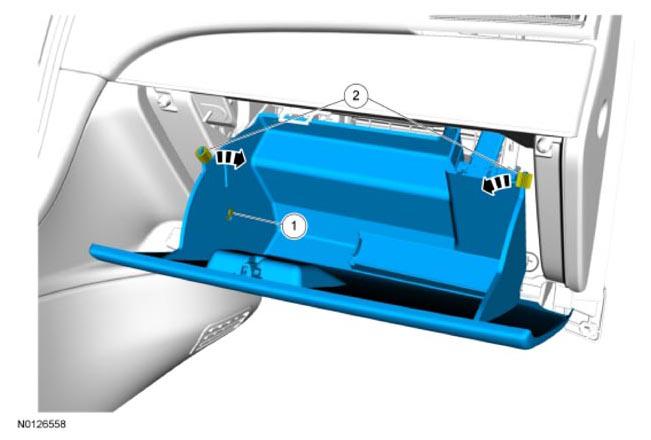

4. Lower the glove compartment.
   1. Detach the glove compartment damper from the glove compartment.
   2. Release the stops by pressing them toward the center of the glove compartment while lowering the glove compartment.

      Driver side register and passenger side register

5. Release the register lower clips and remove the register.
6. To install, reverse the removal procedure.
