Removal and Installation
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Module configuration is required when a new HVAC is being installed.
Upload the HVAC module configuration information to the scan tool. For additional information, refer to PROGRAMMABLE MODULE INSTALLATION (PMI) .
- Remove the LH instrument panel side trim panel.
- Position the driver door opening weatherstrip aside.

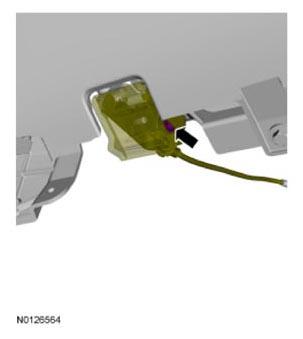

- Remove the hood latch release screw and position the hood latch cable aside.
- Remove the Body Control Module (BCM). For additional information, refer to MULTIFUNCTION ELECTRONIC MODULES .

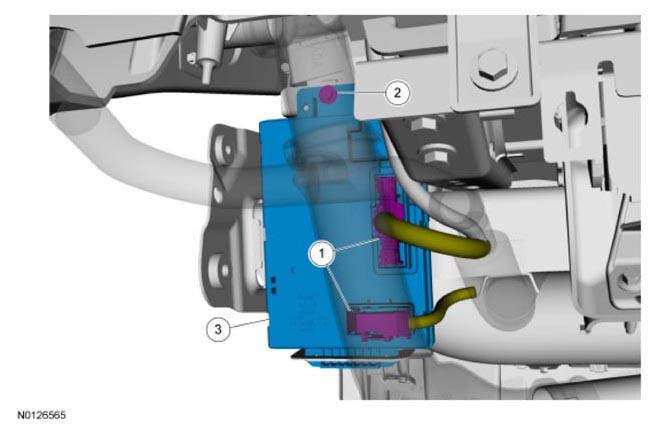

- Remove the HVAC module.
- To install, reverse the removal procedure.
- Download the configuration information to the new HVAC module. For additional information, refer to PROGRAMMABLE MODULE INSTALLATION (PMI) .
