Compressor to Condenser Discharge Line - 3.5L, 3.7L: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |

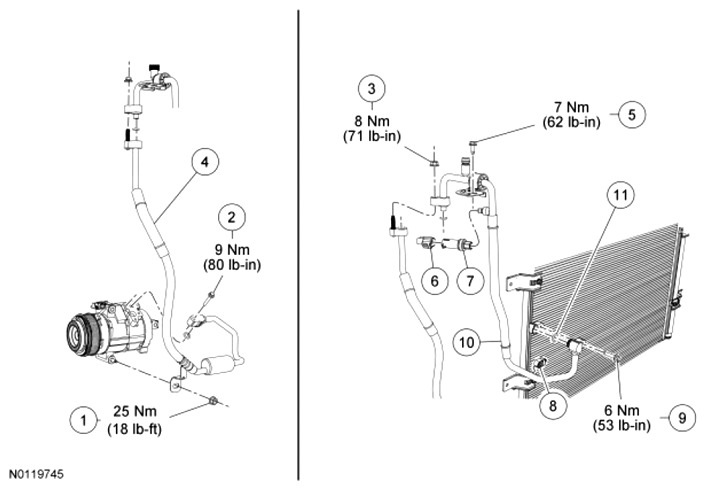

Fig 1: Exploded View Of Compressor-To-Condenser Discharge Lines With Torque Specifications (3.5L, 3.7L)
| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Compressor discharge line bracket nut |
| 2 | W500215 | A/C compressor discharge fitting bolt |
| 3 | W520413 | Compressor-to-condenser discharge line fitting nut |
| 4 | 19972 | Compressor-to-condenser discharge line (compressor side) |
| 5 | W707400 | Compressor-to-condenser discharge line bracket bolt |
| 6 | - | A/C pressure transducer electrical connector (part of 12B637) |
| 7 | 19D594 | A/C pressure transducer |
| 8 | W704005 | Compressor-to-condenser discharge line-to-radiator clip |
| 9 | W500215 | Condenser inlet fitting bolt |
| 10 | 19972 | Compressor-to-condenser discharge line (condenser side) |
| 11 | 19E889 | O-ring seal (3 required) |
