Removal and Installation
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

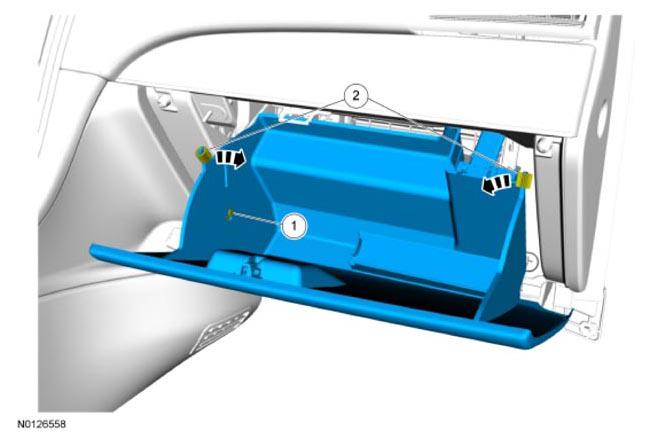

- Remove the 2 glove compartment retainer pins.
- Remove the glove compartment.
- Detach the glove compartment damper from the glove compartment.

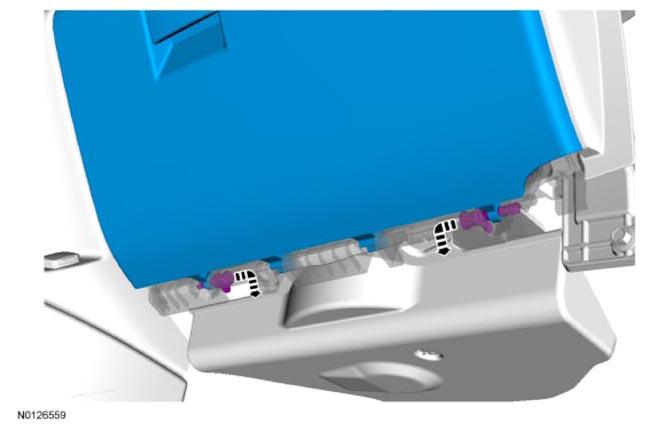

- Release the stops by pressing them toward the center of the glove compartment while lowering the glove compartment, and remove the glove compartment.

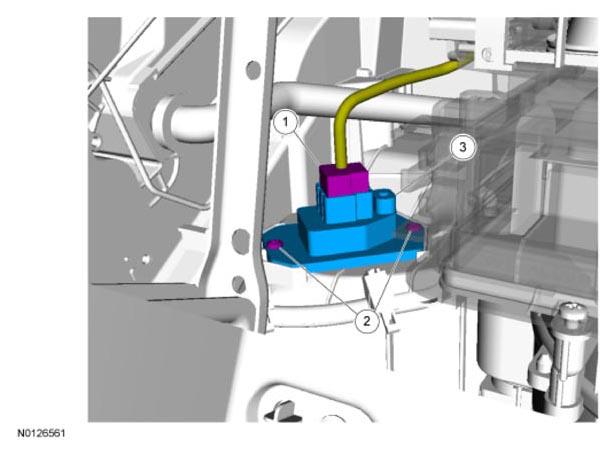

- Remove the blower motor speed control.
- Disconnect the blower motor speed control electrical connector.
- Remove the 2 blower motor speed control screws.
- Remove the blower motor speed control.
- To install, reverse the removal procedure.
