Cooler Bypass Valve: Removal
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
- Remove the air cleaner. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
- Remove the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .

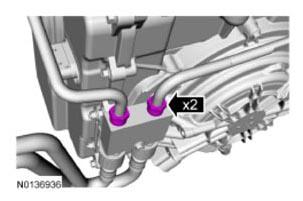

- Special Tool(s): Disconnect Tool, Transmission Cooler Line 307-569.
