Cooler Bypass Valve: Installation

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

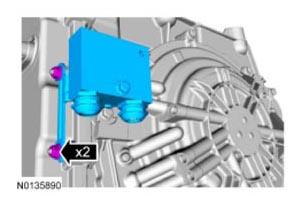

    • Tighten to 9 Nm (80 lb-in).
      G09296879
  1. G08616203
  2. G08616166

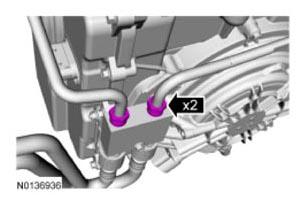

    • Tighten to 30 Nm (22 lb-ft).
      G09296882
  3. Install the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  4. Install the air cleaner. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  5. Check the transmission fluid level and add transmission fluid as necessary.
