Bumper Cover - Front

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Edge and MKX

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the 6 fender splash shield screws (3 each side).

Fig 1: Locating Fender Splash Shield Mounting Screws
Courtesy of FORD MOTOR CO.
Remove the 4 lower screws (2 each side).

Fig 2: Locating Lower Mounting Screws
Courtesy of FORD MOTOR CO.
Remove the 3 lower pin-type retainers.

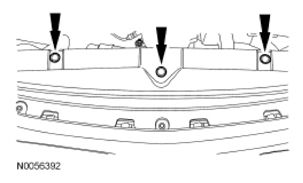

Fig 3: Locating Lower Pin-Type Retainers
Courtesy of FORD MOTOR CO.

Edge
If equipped, disconnect the auxiliary parking lamp electrical connectors.

MKX
If equipped, disconnect the fog lamps electrical connectors.

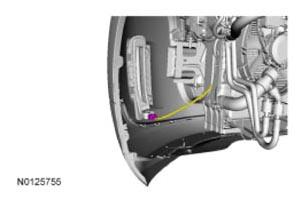

Fig 4: Locating Fog Lamps Electrical Connectors
Courtesy of FORD MOTOR CO.

Edge and MKX
Firmly pull the bumper cover outward to release it from the bracket on both sides of the vehicle.

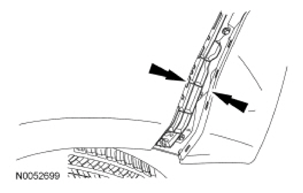

Fig 5: Locating Bumper Cover
Courtesy of FORD MOTOR CO.
NOTE: Edge shown in illustration, MKX similar.

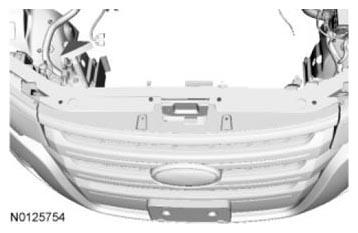

Remove the 2 upper radiator grille bolts.
NOTE: Edge shown in illustration, MKX similar.

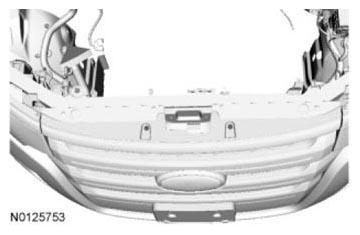

Remove the 4 scrivets from the top of the radiator grill (6 on the MKX) and remove the front bumper cover.
To install, reverse the removal procedure.
