Edge Front Bumper Cover Components

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

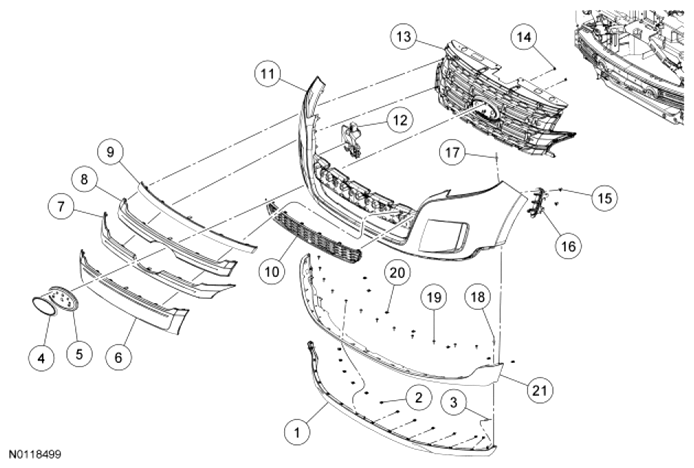

Fig 1: Identifying Edge Front Bumper Cover Related Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	17626	Front bumper cover lower valence
2	W704277	Front bumper cover lower valence nut (12 required)
3	N811018	Lower bumper cover-to-lower valence rivet (2 required)
4	8213	Emblem
5	8200	Emblem bracket
6	8200	Lower radiator grille bar
7	8200	Middle lower radiator grille bar
8	8200	Middle upper radiator grille bar
9	8200	Upper radiator grille bar
10	17K945	Upper front bumper cover lower grille
11	17D957	Upper front bumper cover
12	17C882	Front bumper isolator assembly
13	8A284	Radiator grille reinforcement
14	W707501	Emblem nut (2 required)
15	W705425	Supplemental parking light delete cover retaining clip (2 required)
16	17E810/17E811	Supplemental parking light delete cover (RH/LH)
17	N811018	Upper front bumper cover-to-lower front bumper cover rivet (2 required)
18	N811018	Lower front bumper cover-to-lower valence upper rivet (2 required)
19	W710763	Lower front bumper cover-to-lower valence bolt (12 required)
20	W704277	Lower front bumper cover-to-lower radiator air deflector nut (7 required)
21	17D957	Lower front bumper cover
