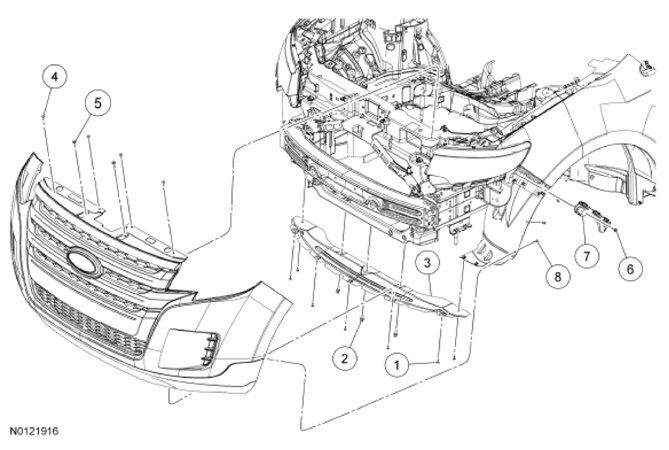

Edge Front Bumper Cover Assembly
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W710763 | Lower radiator air deflector bolt (7 required) |
| 2 | W712196 | Lower radiator air deflector pin-type retainer (3 required) |
| 3 | 8349A | Lower radiator air deflector |
| 4 | W706350 | Upper radiator grille pin-type retainer (4 required) |
| 5 | W711685 | Upper radiator grille reinforcement bolt (2 required) |
| 6 | W711656 | Bumper cover mounting bracket retainer |
| 7 | 17C947 | Front bumper cover support (RH/LH) |
| 8 | W710763 | Front fender splash shield screw (3 required) |
