Transmission Fluid Cooler Tubes: Removal

WARNING: This page is about a different car, the 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

All transmission fluid cooler tubes

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
  2. Remove the air cleaner. Refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  3. Remove the air cleaner outlet pipe. Refer to INTAKE AIR DISTRIBUTION AND FILTERING .

    Front transmission fluid cooler tubes

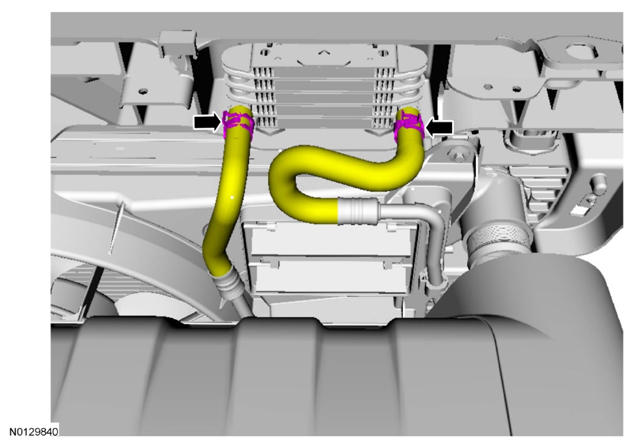

  4. G08980218

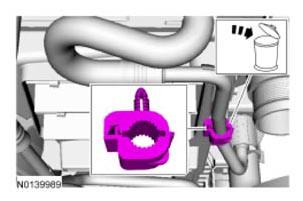

  5. Discard the specified component. Follow local disposal regulations.
    G09296962

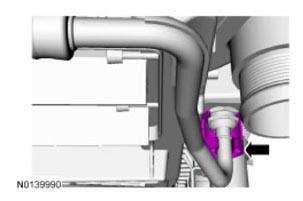

  6. G09296963

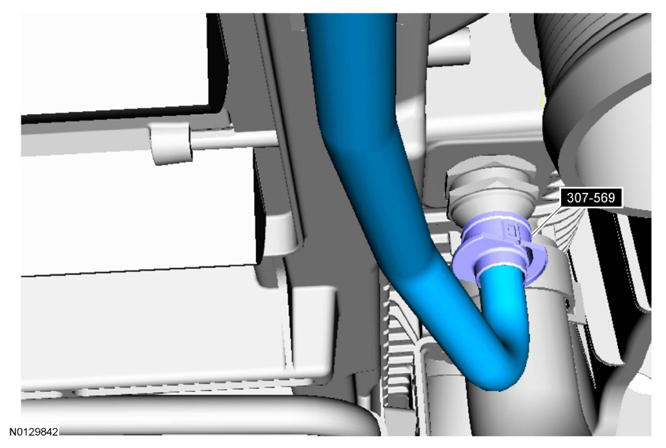

  7. Special Tool(s): Transmission Cooler Line Disconnect Tool 307-569.
    G08980244

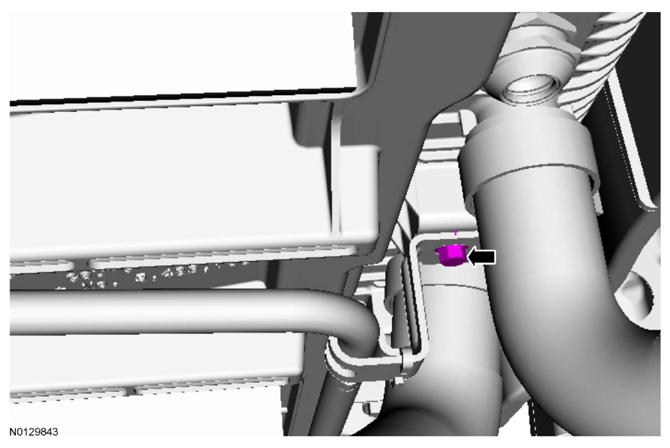

  8. G08980245

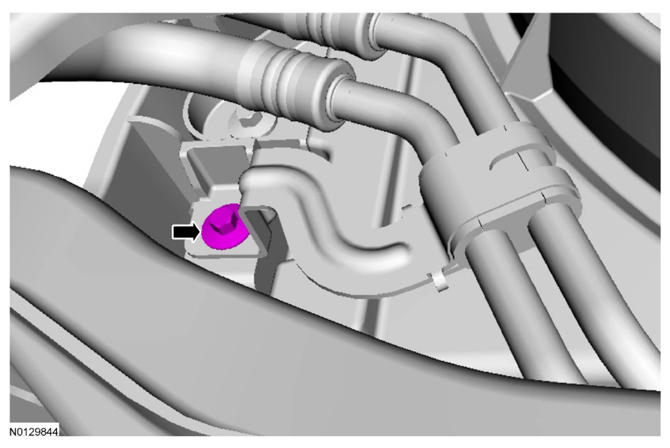

  9. G08980246

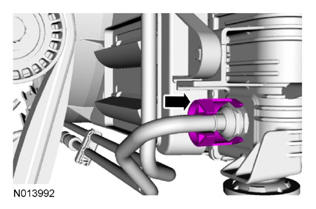

  10. G08980247

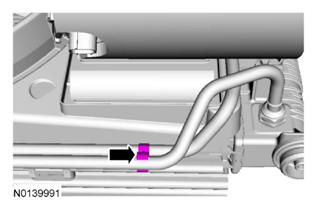

  11. G08980248
  12. Special Tool(s): Transmission Cooler Line Disconnect Tool 307-569.
    G08978573

    All transmission fluid cooler tubes

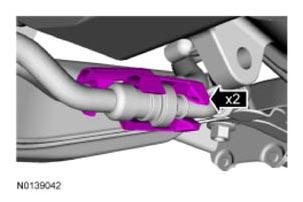

  13. G09296970

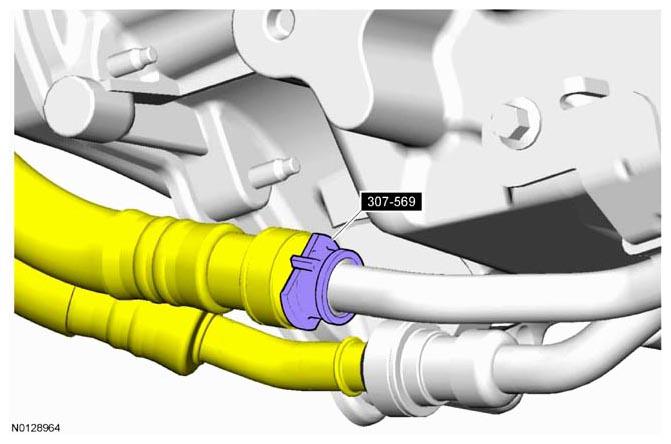

  14. Special Tool(s): Transmission Cooler Line Disconnect Tool 307-569.
    G08658457

    Front transmission fluid cooler tubes

  15. Remove the cooling fan motor and shroud. Refer to ENGINE COOLING .
  16. Remove the front transmission fluid cooler tube assembly.

    Rear transmission fluid cooler tubes

  17. Remove the battery tray. Refer to BATTERY, MOUNTING AND CABLES .
  18. G08980358
  19. G08980359
  20. G08980360
  21. G08658442

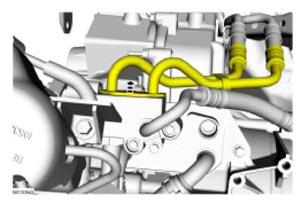

  22. G09296976
  23. Inspect the cooler bypass valve to be sure that the transmission fluid cooler tube seals and backing rings were removed with the rear transmission fluid cooler tubes and are not stuck in the cooler bypass valve. If the transmission fluid cooler tube seals or backing rings are stuck in the cooler bypass valve, remove the seals and backing rings.
    G08658444

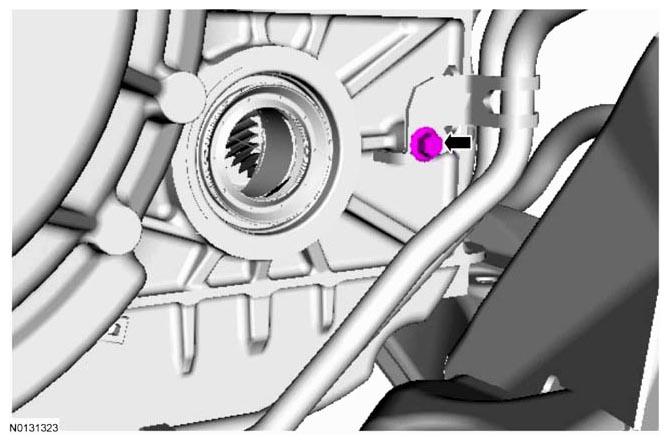

  24. G08658463

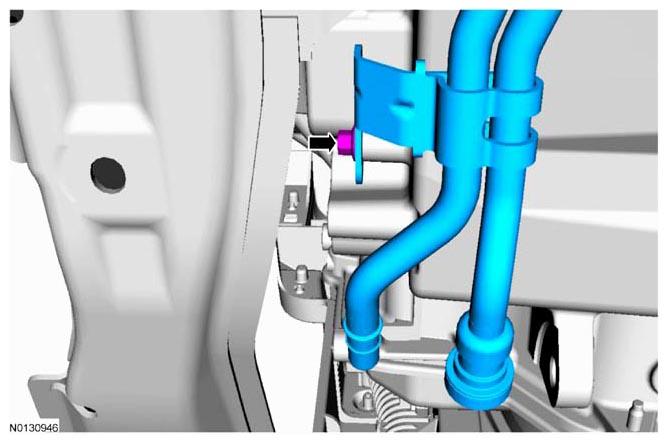

  25. G08658464

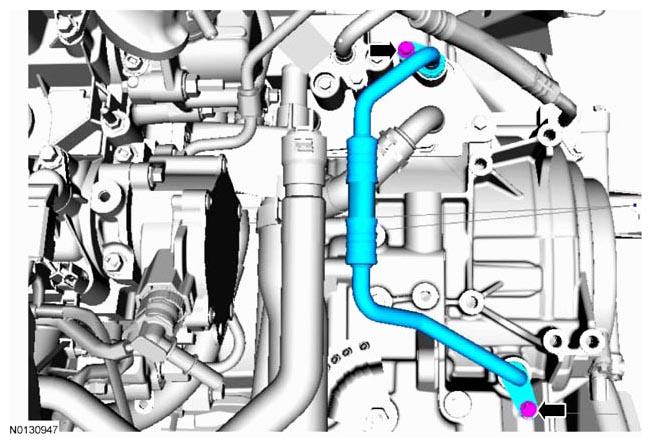

  26. G08658465

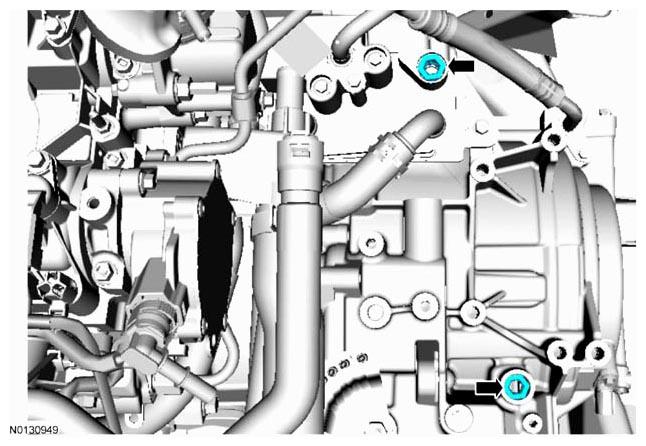

  27. Inspect the transaxle case to be sure that the rear transmission fluid cooler inlet tube seals and backing rings were removed with the rear transmission fluid cooler inlet tube and are not stuck in the transaxle case. If the transmission fluid cooler tube seals or backing rings are stuck in the transaxle case, remove the seals and backing rings.
    G08658466

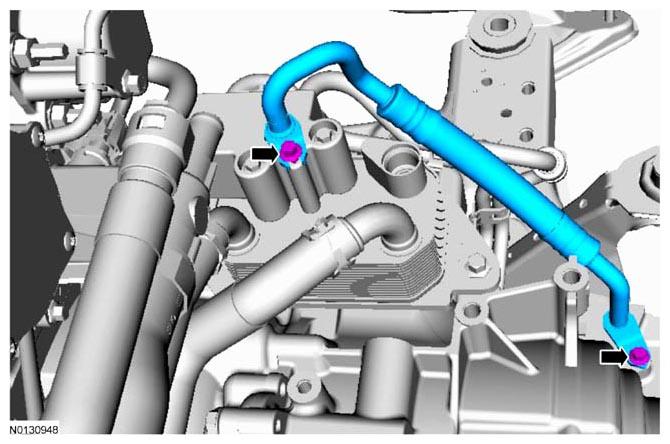

  28. G08658467
  29. Inspect the transaxle case to be sure that the rear transmission fluid cooler outlet tube seals and backing rings were removed with the rear transmission fluid cooler outlet tube and are not stuck in the transaxle case. If the transmission fluid cooler tube seals or backing rings are stuck in the transaxle case, remove the seals and backing rings.

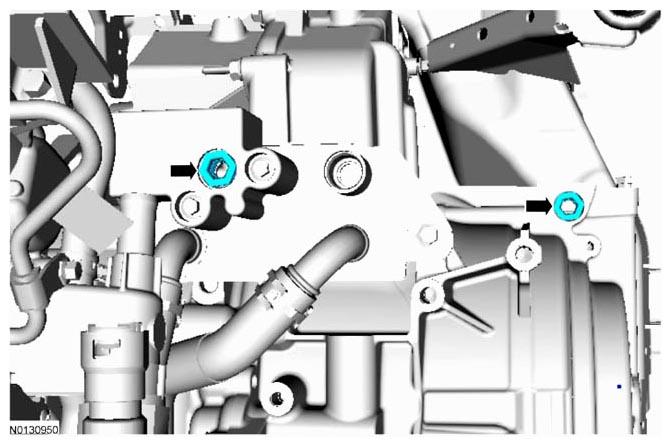

    G08658468
