Transmission Fluid Cooler Tubes: Installation

WARNING: This page is about a different car, the 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Rear transmission fluid cooler tubes

  1. Inspect the rear transmission fluid cooler tube backing rings and seals for damage and install new backing rings or seals if necessary. Lubricate the transmission fluid cooler tube seals with clean transmission fluid and install the backing rings and seals on the rear transmission fluid cooler tubes.
    1. Seal (7D258)
    2. Backing ring (7J324)
      G08980264
    • Tighten to 11 Nm (97 lb-in).
      G08658467
    • Tighten to 11 Nm (97 lb-in).
      G08658465
    • Tighten to 9 Nm (80 lb-in).

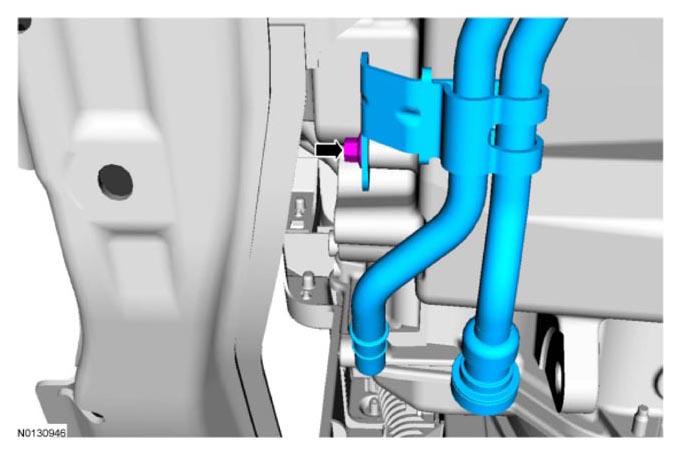

      G09296987
    • Tighten to 9 Nm (80 lb-in).
      G08658463
  6. Inspect the rear transmission fluid cooler tube assembly backing rings and seals for damage and install new backing rings or seals if necessary. Lubricate the transmission fluid cooler tube assembly seals with clean transmission fluid and install the backing rings and seals on the rear transmission fluid cooler tube assembly.
    1. Seal (7D258)
    2. Backing ring (7J324)
      G08980212

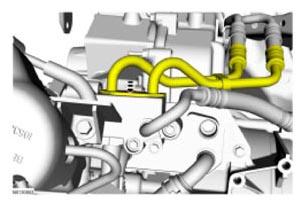

  7. G09296990
  8. Install a new bolt.
    • Tighten to 25 Nm (18 lb-ft).
      G08658442
    • Tighten to 9 Nm (80 lb-in).
      G08980360
  10. G08980359
  11. G08980358
  12. Install the battery tray. Refer to BATTERY, MOUNTING AND CABLES .

    Front transmission fluid cooler tubes

  13. Install the front transmission fluid cooler tube assembly.
  14. Install the cooling fan motor and shroud. Refer to ENGINE COOLING .

    All transmission fluid cooler tubes

  15. G08653968

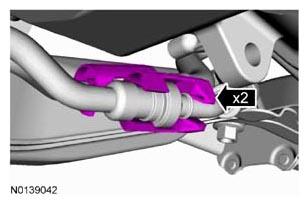

  16. G08658456

    Front transmission fluid cooler tubes

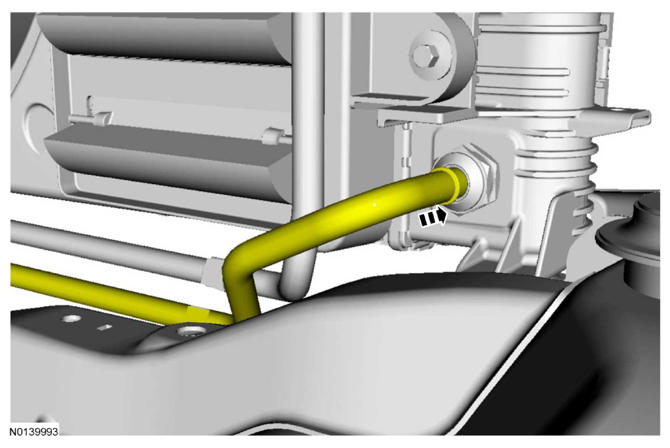

  17. G08980277

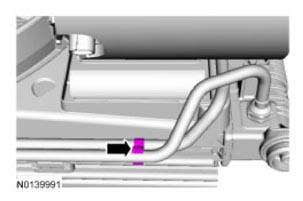

  18. G09296998
  19. G08980247
    • Tighten to 11 Nm (97 lb-in).
      G08980246
    • Tighten to 11 Nm (97 lb-in).
      G08980245

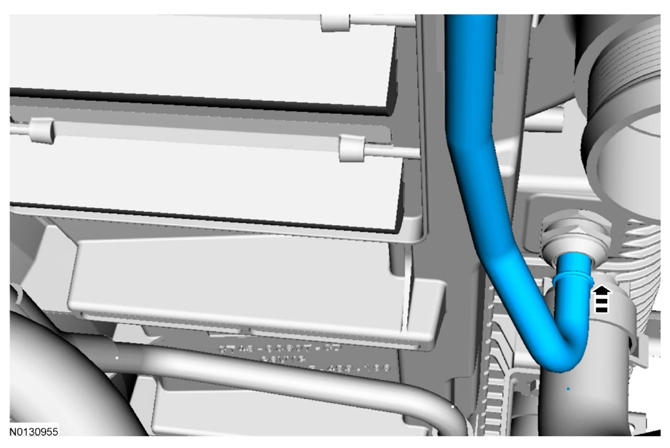

  22. G08980282

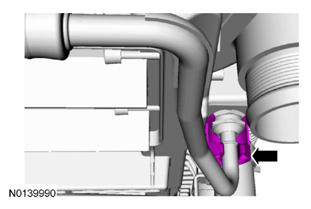

  23. G08980243

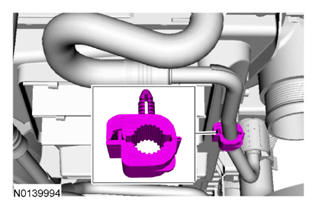

  24. NOTE: Verify clip is securely closed.
    G08980284
  25. G08980218

    All transmission fluid cooler tubes

  26. Install the air cleaner outlet pipe. Refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  27. Install the air cleaner. Refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  28. Fill the transmission with fluid and verify correct operation. Refer to AUTOMATIC TRANSAXLE/TRANSMISSION - 6F35 .
