Front Wheel Drive (FWD) Rear Subframe

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

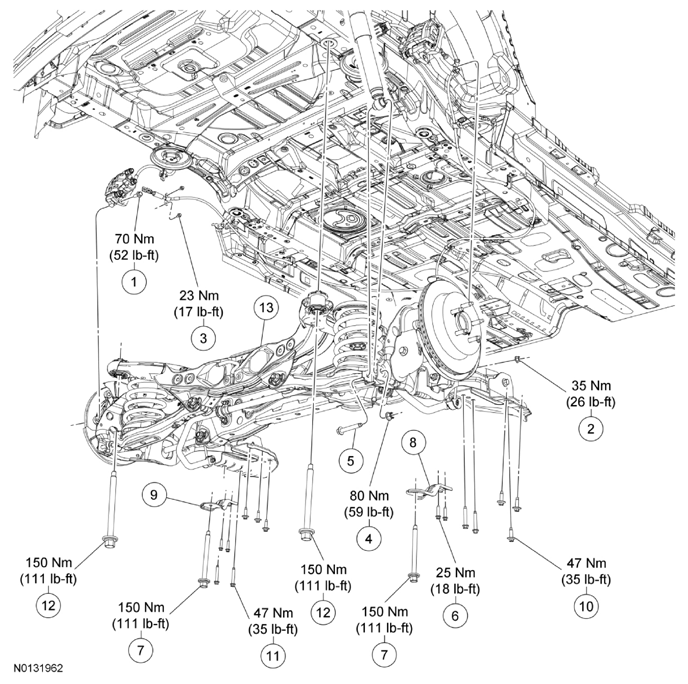

Fig 1: Front Wheel Drive Rear Subframe Related Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W711241	Brake caliper-to-knuckle bolt (4 required)
2	W520414	Stabilizer link nut (2 required)
3	W500021	Parking brake cable-to-anchor plate bolt (4 required)
4	W520214	Lower shock nut (2 required)
5	W712459	Lower shock bolt (2 required)
6	W708745	Subframe brace-to-body bolt (4 required)
7	W710714	Subframe mounting bolts (2 required)
8	5B770	RH subframe body brace
9	5B771	LH subframe body brace
10	W500724	Trailing links-to-body bolt (6 required)
11	W712485	Trailing links-to-body bolt (4 required)
12	W710714	Subframe mounting bolts (2 required)
13	5K067-A	Rear subframe

NOTE: Suspension and subframe fasteners are critical parts because they affect performance of vital parts and systems and their failure may result in major service expense. A new part with the same part number must be installed if installation becomes necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

Remove the rear wheels. For additional information, refer to WHEELS AND TIRES .
If equipped, remove the bolts from the driveshaft-to-rear drive unit flange.
- To install, tighten to 70 Nm (52 lb-ft).

  Fig 2: Locating Driveshaft-To-Rear Drive Unit Flange Bolt
  Courtesy of FORD MOTOR CO.
With a wax pencil, mark the relationship of the rear subframe to the underbody at the mounting locations.

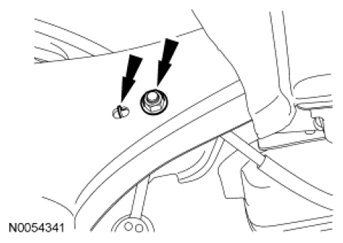

Fig 3: Locating Mark Relationship Of Rear Subframe To Underbody
Courtesy of FORD MOTOR CO.
Remove the muffler and tailpipe assembly.
Disconnect the LH and RH wheel speed sensor connectors.

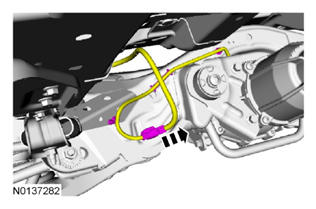

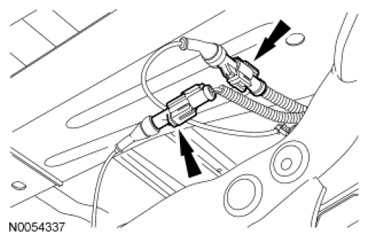

Fig 4: Locating LH And RH Wheel Speed Sensor Connectors
Courtesy of FORD MOTOR CO.
NOTE: All-Wheel Drive (AWD) shown in illustration, Front Wheel Drive (FWD) similar.

Remove the connector from the front of the subframe and position aside.

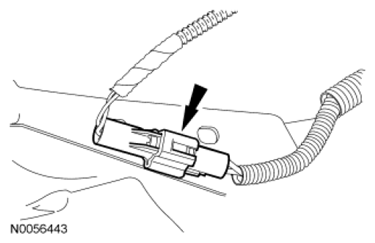

Fig 5: Locating Front Subframe Connector
Courtesy of FORD MOTOR CO.
Disconnect the Active Torque Coupling (ATC) electrical connector.
NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose may occur.

Remove the 4 bolts (2 each side) from the rear hub spindle-to-brake caliper.
- To install, tighten to 70 Nm (52 lb-ft).

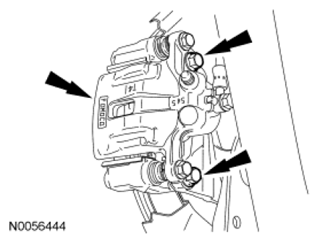

  Fig 6: Locating Rear Hub Spindle-To-Brake Caliper Bolts
  Courtesy of FORD MOTOR CO.

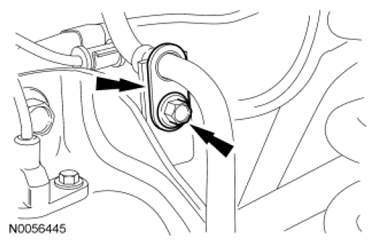

Remove the 2 bolts (1 each side) from the brake hose bracket.

Fig 7: Locating Brake Hose Bracket Bolts
Courtesy of FORD MOTOR CO.
Position the brake calipers aside using mechanic's wire. It is not necessary to disconnect the hydraulic brake lines.

Fig 8: Locating Brake Calipers
Courtesy of FORD MOTOR CO.
Remove the 2 nuts (1 each side) from the parking brake cable bracket and upper stabilizer shaft.
- Discard the nuts.
- To install, tighten to 35 Nm (26 lb-ft).

  Fig 9: Locating Parking Brake Cable Bracket And Upper Stabilizer Shaft Nuts
  Courtesy of FORD MOTOR CO.

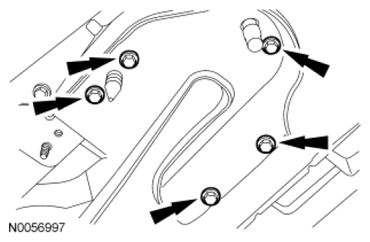

Remove the 4 bolts (2 each side) from the parking brake cable-to-backing plate.
- To install, tighten to 23 Nm (17 lb-ft).

  Fig 10: Locating Parking Brake Cable-To-Backing Plate Bolts
  Courtesy of FORD MOTOR CO.
If equipped, disconnect the Rear Drive Unit (RDU) vent tube pushpin and hose adapter from the upper rear of the subframe.

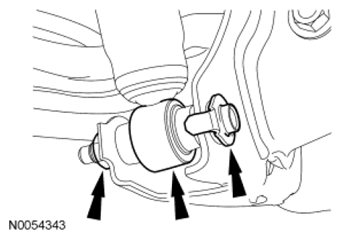

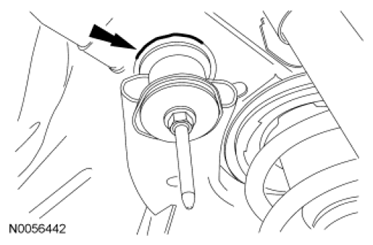

Remove the rear shock-to-trailing link lower nuts and flag bolts.
- Discard the nuts and flag bolts.
- To install, tighten to 80 Nm (59 lb-ft).

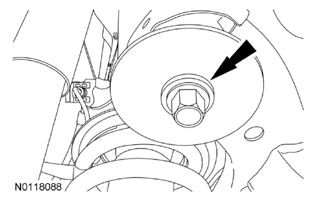

  Fig 11: Locating Rear Shock-To-Trailing Link Lower Nuts And Flag Bolts
  Courtesy of FORD MOTOR CO.
NOTE: The rear subframe must be secured to the lifting table. The rear subframe may become unstable and fall from the lifting table.

NOTE: Position a jackstand under the front of the vehicle to keep the vehicle from becoming unstable on the hoist.

Position the lifting table under the rear subframe.

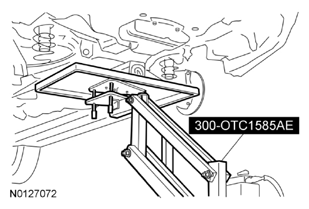

Fig 12: Lifting Powertrain Lift Under Rear Subframe
Courtesy of FORD MOTOR CO.
Remove the 4 front (2 each side) bushing brace-to-body bolts.
- Discard the bolts.
- To install, tighten to 25 Nm (18 lb-ft).

  Fig 13: Locating Bushing Brace-To-Body Bolts
  Courtesy of FORD MOTOR CO.
Remove the 2 front (1 each side) mounting bolts from the rear subframe.
- Discard the bolts.
- To install, tighten to 150 Nm (111 lb-ft).

  Fig 14: Locating Front Mounting Bolts From Rear Subframe
  Courtesy of FORD MOTOR CO.
NOTE: The bolts are 2 different sizes, note the location of the bolts to make sure of correct installation.

Remove the 10 bolts (5 each side) from the trailing links-to-vehicle body.
- Discard the bolts.
- To install, tighten to 47 Nm (35 lb-ft).

  Fig 15: Locating Trailing Links-To-Vehicle Body Bolts
  Courtesy of FORD MOTOR CO.
NOTE: The rear springs are under pressure. The lifting table must be lowered slowly to relieve the spring pressure.

Remove the 2 rear mounting bolts.
- Discard the bolts.
- To install, tighten to 150 Nm (111 lb-ft).

  Fig 16: Locating Rear Mounting Bolts
  Courtesy of FORD MOTOR CO.
Remove the rear subframe.
Transfer the components as necessary.
To install, reverse the removal procedure.
