Subframe - Front, 2.0L GTDI: Removal

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Suspension and subframe fasteners are critical parts specially designed for the purpose. Replacement fasteners must be identical to the original equipment and torqued as specified. Poor quality or improperly tightened fasteners may fail in service, resulting in vehicle damage and major repair expense.
NOTE: When repairing the power steering system, care should be taken to prevent the entry of foreign material or failure of the power steering components may result.
NOTE: Removal steps in this procedure may contain installation details.
  1. NOTE: Do not allow the steering column to rotate while the steering column shaft is disconnected, or damage to the clockspring may occur. If there is evidence that the steering column has rotated, the clockspring must be removed and recentered. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .

    Steering wheel in straight ahead position.

    General Equipment: Steering Wheel Holder.

    G07935577
  2. Remove the wheel and tire. For additional information, refer to WHEELS AND TIRES .

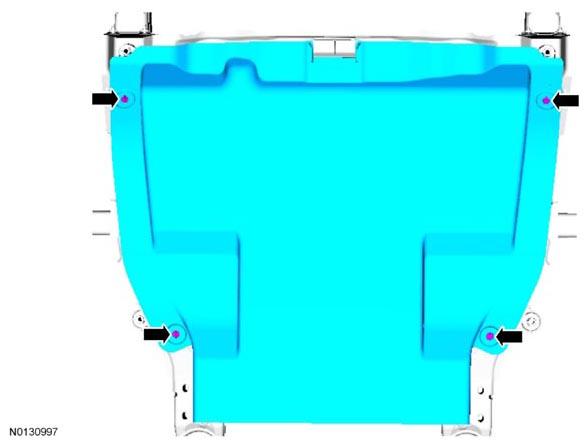

  3. G07935578
  4. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Discard the specified component. Follow local disposal regulations.

    • To install, tighten the new bolt to 25 Nm (18 lb-ft).

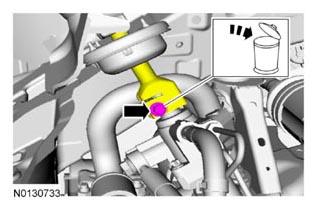

      G07935579
  5. On both sides. Marker.

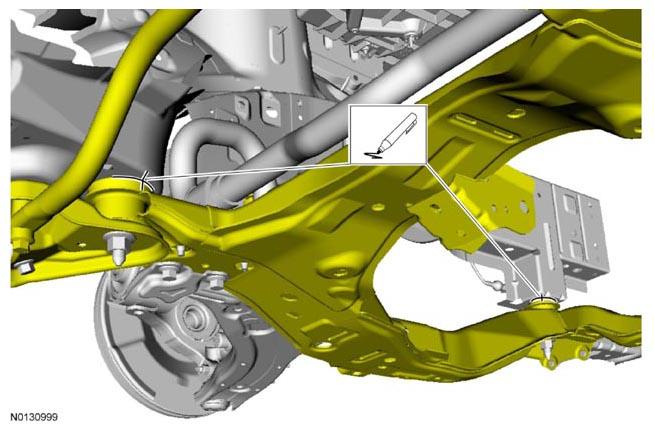

    G07935580

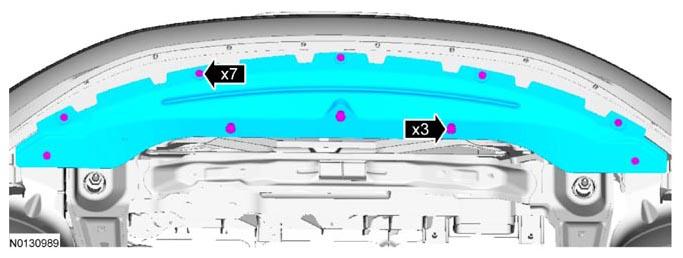

  6. G07935581
  7. G07935582

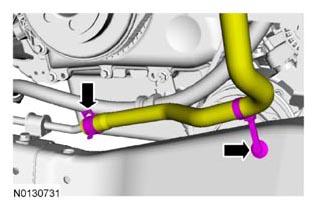

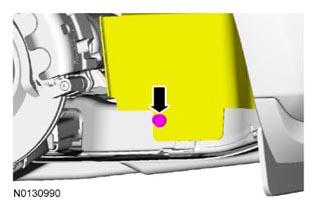

  8. G07935583
    • To install, tighten to 9 Nm (80 lb-in).
      G09299919
  10. On both sides.
    • To install, tighten to 9 Nm (80 lb-in).

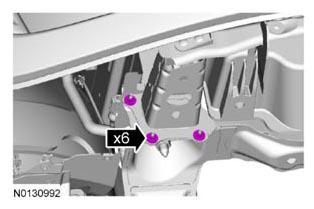

      G07935585
  11. Discard the specified component. Follow local disposal regulations.
    • To install, tighten the new bolt to 26 Nm (19 lb-ft).

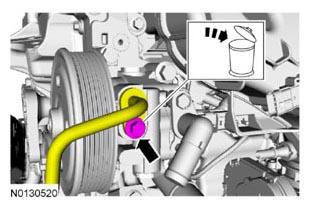

      G07935586
  12. On both sides. Discard the specified component. Follow local disposal regulations.
    • To install, tighten the new nuts to 48 Nm (35 lb-ft).
      G07935587
  13. On both sides.

    Special Tool(s): Tie Rod End Remover 211-105 (T85M-3395-A).

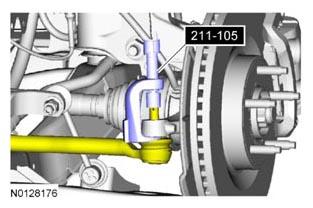

    G07935588
  14. On both sides. Discard the specified component. Follow local disposal regulations.
    • To install, tighten the new nuts and bolts to 55 Nm (41 lb-ft).

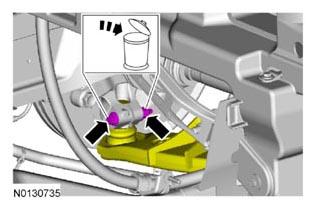

      G07935589
  15. Wire brush. Apply the substance from the specified tube.

    Material: Threadlock and Sealer TA-25.

    • To install, tighten to 115 Nm (85 lb-in).

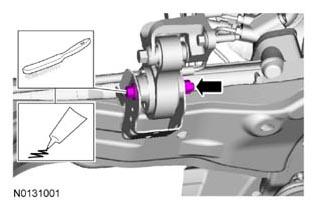

      G07935590
  16. General Equipment: Powertrain Lift.

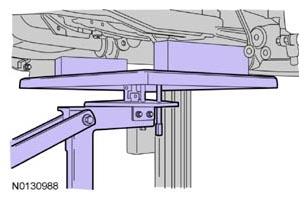

    G07935591
  17. On both sides. Discard the specified component. Follow local disposal regulations.
    • To install, tighten the new bolts to 90 Nm (66 lb-ft).

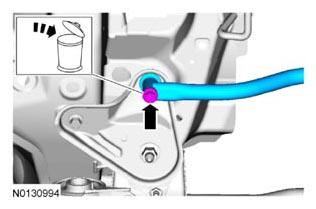

      G07935592
  18. Discard the specified component. Follow local disposal regulations.
    • To install, review the unique instructions and illustration in the installation procedure.

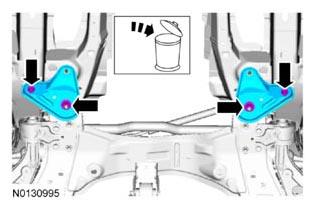

      G07935593
  19. Discard the specified component. Follow local disposal regulations.
    • To install, tighten the new nuts to 133 Nm (98 lb-ft).

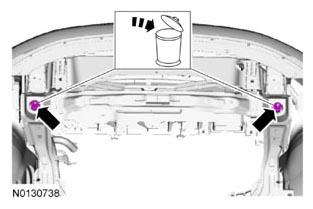

      G07935594
  20. On both sides. Discard the specified component. Follow local disposal regulations.
    • To install, tighten the new nuts to 133 Nm (98 lb-ft).

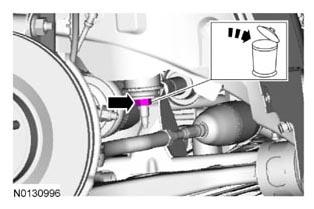

      G07935595
  21. General Equipment: Powertrain Lift.
    • To install, align the subframe to the marks on the uni-body.

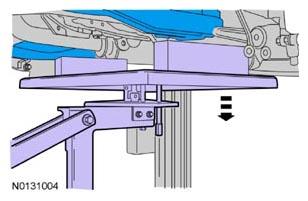

      G07935596
