Subframe - Front, 2.0L GTDI: Installation

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
  2. Loosely install all fasteners before tightening.

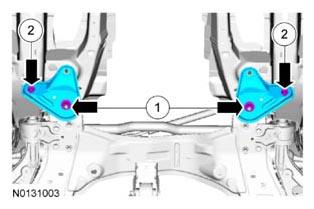

    1. Tighten the new nuts to 133 Nm (98 lb-ft).
    2. Tighten the new bolts to 90 Nm (66 lb-ft).
      G07935597
  3. Fill the power steering system. For additional Information, refer to STEERING SYSTEM .
