Removal and Installation

WARNING: This page is about a different car, the 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Remove the Air Cleaner (ACL) outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .

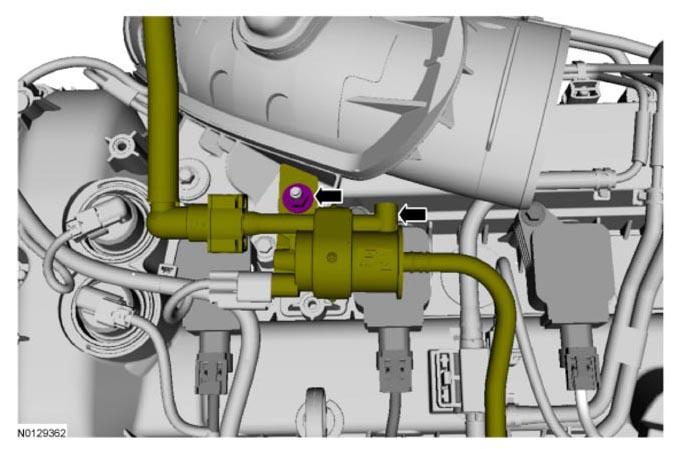

Remove the nut and position the EVAP canister purge valve aside.
- To install, tighten to 10 Nm (89 lb-in).

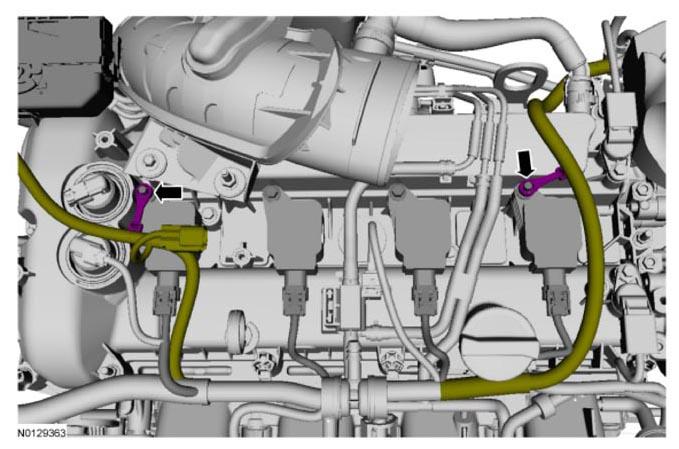

Disconnect the wire retainers and position aside the engine wire harness.
NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plug and surrounding area before removing the ignition coil-on-plug.

Disconnect the 4 ignition coil-on-plug electrical connectors.
NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

Remove the 4 bolts and the 4 ignition coil-on-plugs.
- To install, tighten to 8 Nm (71 lb-in).
Inspect the coil boots for rips, nicks or tears. Remove and discard any damaged coil boots.
- To install, slide the new coil boot onto the coil until it is fully seated at the top of the coil.
To install, reverse the removal procedure.
- Apply a small amount of silicone brake caliper grease and dielectric compound to the inside of the ignition coil-on-plug boots before installation.
