TB Component Location

WARNING: This page is about a different car, the 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

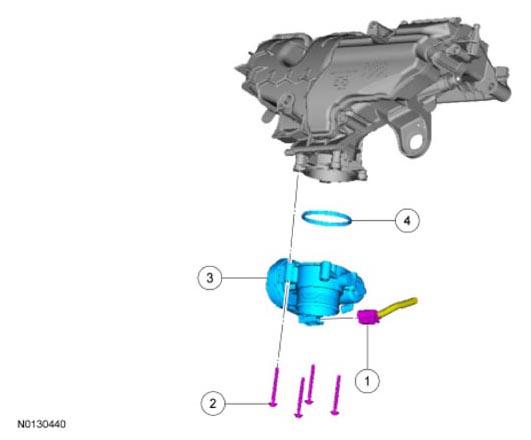

G09295145
Item Part Number Description
1 - TB  electrical connector (part of 9D930)
2 W503281 TB  bolt (4 required)
3 9E926 TB
4 9E936 Throttle Body (TB) gasket
