Fuel Injection Pump
WARNING: This page is about a different car, the 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

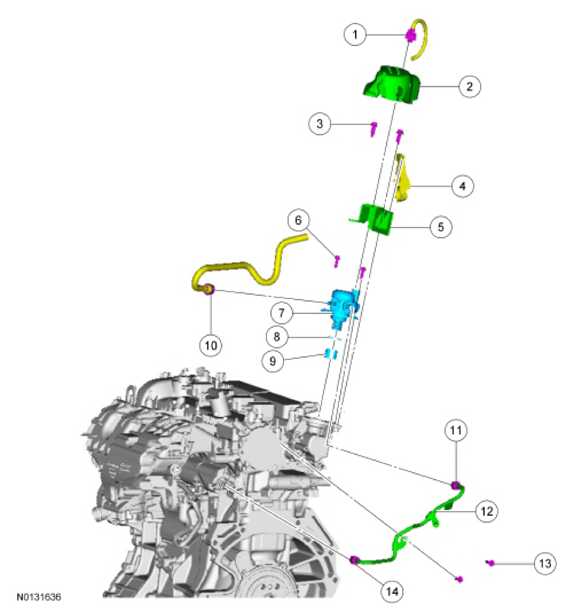

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel injection pump electrical connector (part of 12A581) |
| 2 | 9D440 | Fuel injection pump noise insulator shield |
| 3 | W500023 | Fuel injection pump shield bolt (2 required) |
| 4 | 18481 | Heater hose clip |
| 5 | 9A397 | Fuel injection pump shield |
| 6 | W500414 | Fuel injection pump bolt (2 required) |
| 7 | 9350 | Fuel injection pump |
| 8 | 9E583 | Fuel injection pump O-ring seal (part of 9350) |
| 9 | 6C287 | Fuel injection pump tappet (part of 9350) |
| 10 | - | Fuel jumper tube-to-fuel injection pump spring lock coupling (part of 9J280) |
| 11 | - | High pressure fuel tube-to-fuel injection pump flare nut (part of 9G271) |
| 12 | 9G271 | High pressure fuel tube |
| 13 | W500015 | High pressure fuel tube bracket bolt (2 required) |
| 14 | - | High pressure fuel tube-to-fuel rail flare nut (part of 9G271) |
