Thermostat Housing - 3.5L, 3.7L: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Orange Antifreeze/Coolant Concentrated VC-3-B (US); CVC-3-B2 (Canada) |
WSS-M97B44-D |
| Motorcraft® Orange Antifreeze/Coolant Prediluted VC-3DIL-B (US); CVC-3DIL-B (Canada) |
WSS-M97B44-D2 |

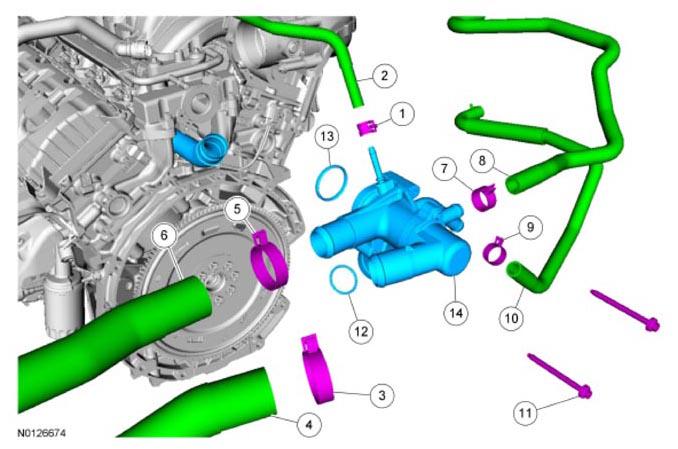

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Thermostat housing-to-degas bottle hose clamp (part of 8075) |
| 2 | 8075 | Thermostat housing-to-degas bottle hose |
| 3 | - | Lower radiator hose clamp (part of 8286) |
| 4 | 8286 | Lower radiator hose |
| 5 | - | Upper radiator hose clamp (part of 8260) |
| 6 | 8260 | Upper radiator hose |
| 7 | - | Heater core outlet hose clamp (part of 18K580) |
| 8 | 18K580 | Heater core outlet hose |
| 9 | - | Heater core inlet hose clamp (part of 18K579) |
| 10 | 18K579 | Heater core inlet hose |
| 11 | W708607 | Thermostat housing bolt (2 required) |
| 12 | 8565 | Thermostat housing-to-coolant inlet pipe O-ring seal |
| 13 | 8A571 | Thermostat housing gasket |
| 14 | 8A586 | Thermostat housing |
