Removal and Installation

WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The thermostat and thermostat housing are replaced as an assembly.

Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .

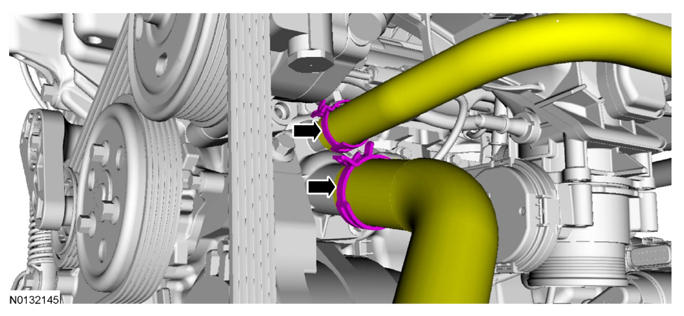

Release the 2 clamps and disconnect the 2 coolant hoses.
Remove the 3 bolts and the thermostat housing.
- Inspect the gasket and install a new gasket if necessary.
- To install, tighten to 10 Nm (89 lb-in).
