Thermostat - 3.5L, 3.7L: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Orange Antifreeze/Coolant Concentrated VC-3-B (US); CVC-3-B2 (Canada) |
WSS-M97B44-D |
| Motorcraft® Orange Antifreeze/Coolant Prediluted VC-3DIL-B (US); CVC-3DIL-B (Canada) |
WSS-M97B44-D2 |

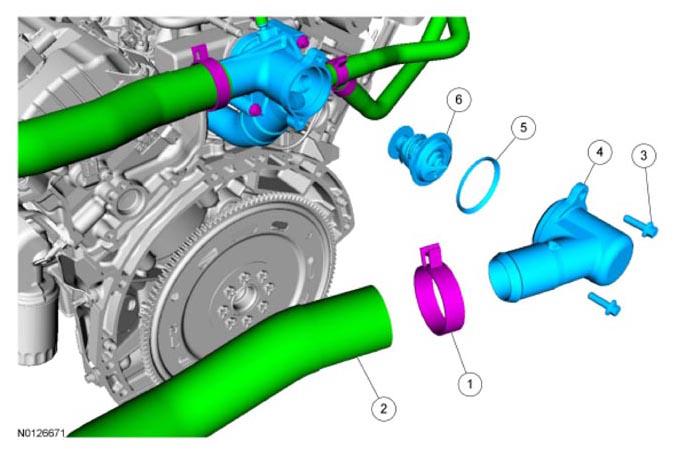

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Lower radiator hose clamp (part of 8286) |
| 2 | 8286 | Lower radiator hose |
| 3 | W500014 | Coolant inlet connection bolt 10 Nm (89 lb-in) (2 required) |
| 4 | 8594 | Coolant inlet connection |
| 5 | - | O-ring seal |
| 6 | 8575 | Thermostat |
