Radiator - 3.5L, 3.7L: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

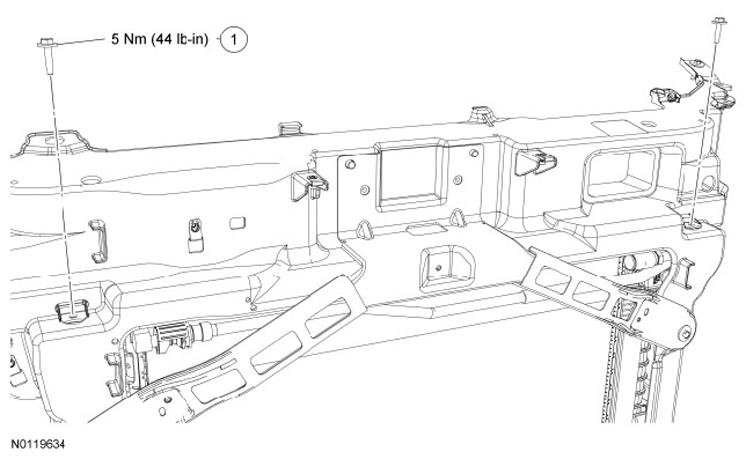

| Item |
Part Number |
Description |
| 1 |
W505425 |
Upper radiator support bracket bolts (2 required) |
Courtesy of FORD MOTOR CO.

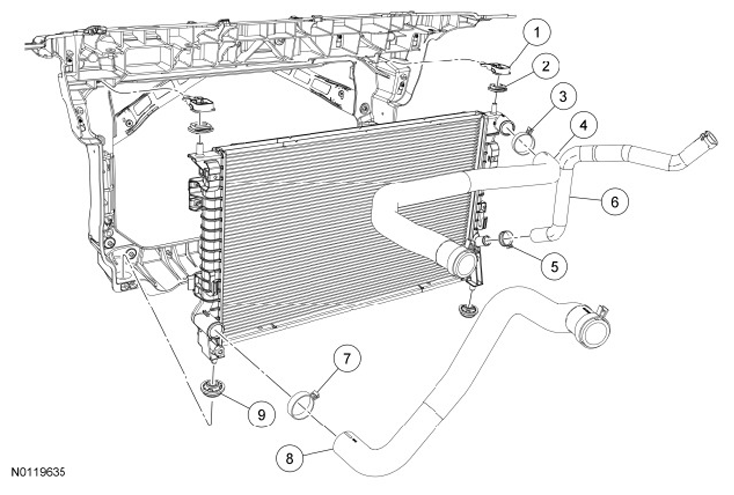

| Item |
Part Number |
Description |
| 1 |
8A194 |
Upper radiator support bracket (2 required) |
| 2 |
8124A |
Upper radiator insulator (2 required) |
| 3 |
W527376 |
Upper radiator hose clamp |
| 4 |
8620 |
Upper radiator hose |
| 5 |
15161 |
Degas bottle-to-radiator hose clamp |
| 6 |
8C633 |
Degas bottle-to-radiator hose |
| 7 |
W527376 |
Lower radiator hose clamp |
| 8 |
8286 |
Lower radiator hose |
| 9 |
8124B |
Lower radiator insulator (2 required) |

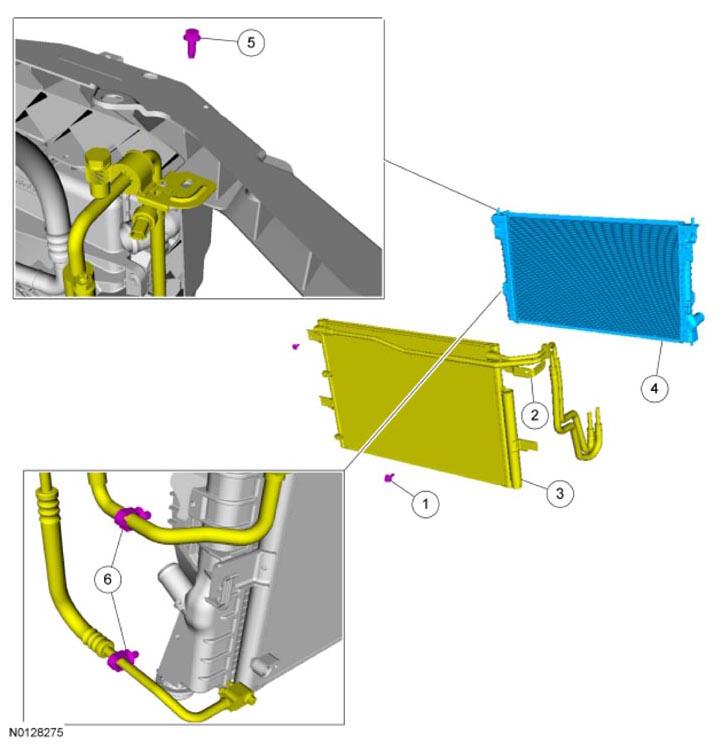

| Item |
Part Number |
Description |
| 1 |
W503924 |
A/C condenser bolt - 10 Nm (89 lb-in) (2 required) |
| 3 |
7B147 |
Transmission fluid cooler tube bracket |
| 3 |
19710 |
A/C condenser |
| 4 |
8005 |
Radiator |
| 5 |
W707400 |
Compressor-to-condenser discharge line bracket bolt - 7 Nm (62 lb-in) |
| 6 |
19D738 |
A/C line pushpins (2 required) |
